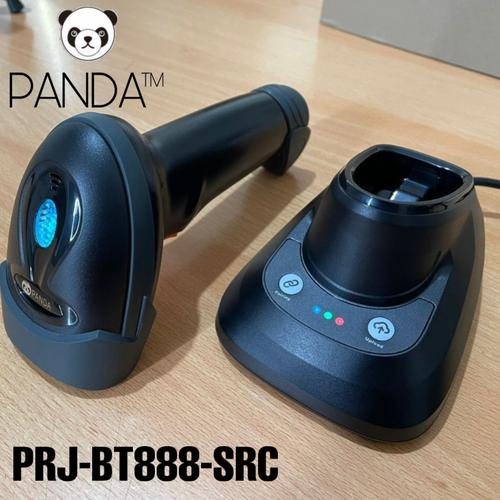

Cordless 2D Wireles Bluetooth 2.4G Panda Barcode Scanner

GARANSI 12 Bulan tidak termasuk baterai dan Accesories

Panda PRJ-BT888-SRC
●1MP image frame rate up to 90fps
●Support OCR ( Passport, ID card,driving license card,Visa Card etc.)
●3-in -1 transmission: Cradle +BT+Type-B Cable
●Can read all 1D/2D/Dotcode barcode on the screen and paper
●Support double firmware upgrade online: wireless and decoder.
●Support for offline storage mode,can memory 380,000 characters (EAN-13 code)
logistics, express, Warehouse inventory,Tobacco,Health care or some industrial business


Operation Parameter
Image Sensor : CMOS
Image (pixels) : 1280 pixels (h) * 800 pixels (V)
Light Source : Aiming ; 617 nm LED : Illumination:4000K LED
Frame Rate : 90 FPS
Depth of Field :
4mil code39 4 butes :30-120mm
13mil EAN-13 13 Bytes : 25-300mm
10mil PDF417 8 bytes: 5-280mm
10mil QR 8bytes : 15-180mm
Scan Angle : Elevation angle 65°/Tilt angle 30°/Declination 55°
Field Of View : 34° horizontal, 28° vertical
Scan Mode : Handhand (Manual) /Handfree (Automatic )
Firmware : Decoder update online
Minumin Resolution : ≥ 3mil (code39)
Print Contrast : ≥ 20%
Visual Indikator : Three LED indicator : Green(decoder light) Red(charge light), Blue(Connection
success).Buzzer , Motor vibration.
Interfaces : USB-TypeB, RS-232, 2.4G, blue BLE4.0(Optional) , Virtual serial Port
Transmision Range : 2.4G: 100meters, Bluetooth HID,BLE、SPP：:40meters (On open air)
Transmiisn Mode : USB-typeB Wired, 2.4G, Blue BLE4.0(Optional)
Memory Capacity : Up to 512000 bits (38000 EAN 13 code) or customize memory
OS : Windows, IOS, Android
Beeper Operation : Programmable Tone & Volume

Physical parameter
Dimension : Scanner: 174mm*66mm*90mm(L*W*H)Cradle:122mm*94mm*75mm(L*W*H)
Package Box Size : 220mm*175mm*105mm(L*W*H)
Weight : Scanner:190g Cradle:132g (without the cable)
Cable : USB-Type-B charge cable (1.5meter)
Connector Type : Charge cable with USB2.0- Type B ( Printer cable)
Case Material : ABS+PC
