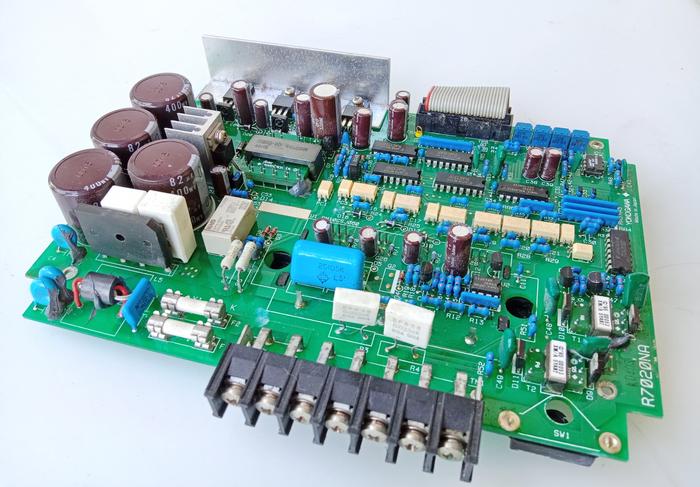

Pcb Power Module Driver ex motor ac servo - Pcb control 1

Pcb Control Power Module Driver motor ac servo Berikut Daftar Komponen dari masing masing PCB - Pcb Power 1 ex Power Module Driver motor ac servo x1 Power Module PM10CSJ060 x1 C339C x2 74AC139P x1 74HC14AP x1 74HC132AP x1 C393C x1 TC4013BP x2 00053 XM/A 5YAN2 x2 OP07 C947 Ultralow Offset Voltage OpAmp x1 2405A x1 D5S4M x2 24M15A x1 TOP223Y x1 YOKOGAWA XM001AG-JO8-5YAN1 x1 Relay DSP1a-Dc5v x2 Resistor BPR38 x3 Elco 35v 220uF x10 Elco 25v 82uF x2 Elco 10v 470uF x1 Elco 10v 2200uF x4 Elco 400v 82uF dll - Pcb Power 2 ex Servo Kollmorgen Servostar CEO6560 Servo Driver 2.2Kva x1 Module Konektor Payton TRF-0000649403 x1 MIC29150 5.0WT x6 Optocoupler SFH6345 X001 x6 Optocoupler SFH6156-3 x1 Capacitor Wima MKP 10 15mm 630v 0.1uF x1 IC Chip Altera EPM7064S TC44-10 x2 Miniature Hall Effect Current Transformer TELCON HTP 50M x1 Ceramic capacitor 153M 30LV Y2 300~ X1 400 x1 Ceramic capacitor 103M 440L Y1 500 ~ X1 400 x3 Varistor Walsin 561K14D x2 Thrermistor NTC 1,0 15mm x5 Elco 470uF 25v x3 Elco 100uF 35v x1 Mitsubishi Electric IGBT PM30CSJ060 x1 Modul IGBT Sirectifier 3PDB3512 x1 Mosfet STW13NK60Z x1 Mosfet G20N60 dll..
