AP700008 = BELDEN Konektor RJ45 CAT. 6 isi 50
Rp345.000

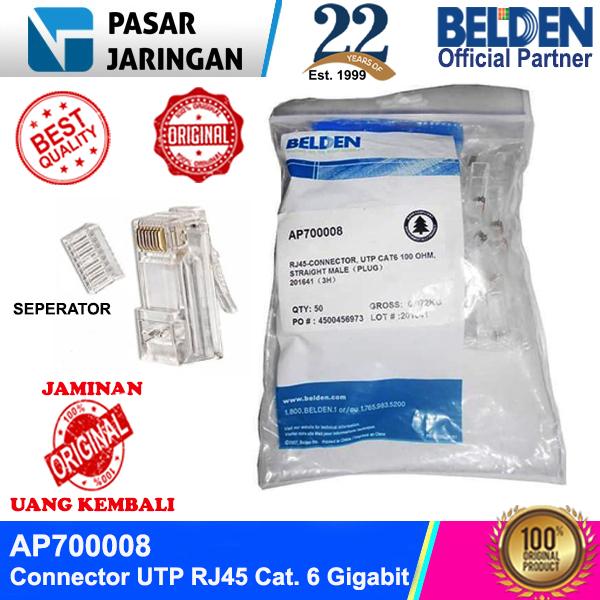

BELDEN AP700008 Connector UTP Plug RJ45 Male Cat. 6 Gigabit with Seperator 50pcs
1 Pack content 50pcs
Description:
RJ45-Connector, Cat6, 100 ohms, Straight male (plug)
PHYSICAL CHARACTERISTICS:
Plug Housing PC - Polycarbonate, UL 94V-2 rated
Contact Blade Phosphor bronze plated with 50u’’ gold over 100u’’ nickel undercoat
ELECTRICAL CHARACTERISTICS:
Current Rating 1.5 A maximum
Characteristic Impendence 100 ohms
Insulation Resistance 100 Mohms Min
Contact Resistance 20mohms Max
Voltage Rating 30 VAC maximum
MECHNICAL CHARACTERISTICS:
Cable Retention Force 40 lbs Max
Max Insertion and Withdrawal Force 22 N
Humidity 10% to 90% R.H.
WIRE RANGE:
Conductor Diameters: 0.41mm to 0.51mm (26AWG to 24AWG)
Conductor Type Solid; Stranded
Insulation Diameters: 0.98mm to 1.05mm
Cable Diameters: 5.0mm to 7.0mm
1 Pack content 50pcs
Description:
RJ45-Connector, Cat6, 100 ohms, Straight male (plug)
PHYSICAL CHARACTERISTICS:
Plug Housing PC - Polycarbonate, UL 94V-2 rated
Contact Blade Phosphor bronze plated with 50u’’ gold over 100u’’ nickel undercoat
ELECTRICAL CHARACTERISTICS:
Current Rating 1.5 A maximum
Characteristic Impendence 100 ohms
Insulation Resistance 100 Mohms Min
Contact Resistance 20mohms Max
Voltage Rating 30 VAC maximum
MECHNICAL CHARACTERISTICS:
Cable Retention Force 40 lbs Max
Max Insertion and Withdrawal Force 22 N
Humidity 10% to 90% R.H.
WIRE RANGE:
Conductor Diameters: 0.41mm to 0.51mm (26AWG to 24AWG)
Conductor Type Solid; Stranded
Insulation Diameters: 0.98mm to 1.05mm
Cable Diameters: 5.0mm to 7.0mm
