ARDUINO NANO V3 ATMEGA328P CH340G 5V ARDUINO NANO R3 ATMEGA328P 16Mhz

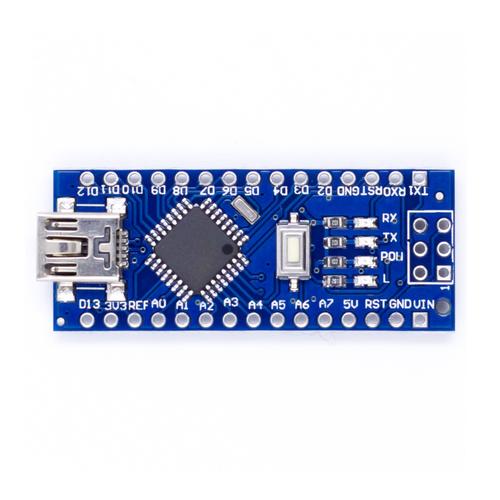

Arduino Nano V3.0 Spesifikasi : 1.12 digital input / output port D2 to D13 2.8 analog inputs A0 ~ A7 3.1 pairs TTL level serial transceiver port RX / TX 4.6 PWM port , D3 , D5, D6, D9 , D10 , D11 5. Atmel ATmega328P - AU MCU 6 USB download and power 7. Support the external 5V ... 12V DC power supply 8. To support 9V battery powered 9 support ISP download Deskripsi : The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3. x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one. note : arduino nano yang dijual masih belum tersolder dengan pinnya
