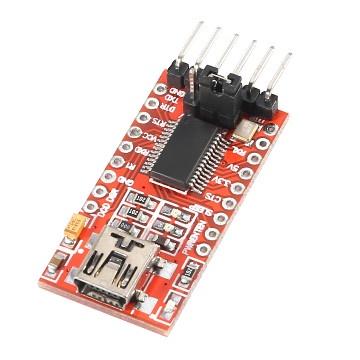

Modul USB to TTL FT232RL FTDI USB-TTL Module
Rp17.800
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
The FT232RL USB to TTL 3.3V/5V FTDI Serial Adapter Module is a popular module that is used to connect a TTL serial communicating device to a PC via a USB mini port. This converter module has options for different output voltage options which are set by the jumper on the board.
Spesifikasi :
Operating Voltage: 5V/3.3V DC
Max Current Draw: 5V - 500mA; 3.3V - 50mA
Connector: Mini USB
Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration
Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, RS232) at TTL levels
128 byte receive buffer and 256 bytes transmit buffer
Transmit and receive LED drive signals
Fully integrated clock generation with no external crystal required
Spesifikasi :
Operating Voltage: 5V/3.3V DC
Max Current Draw: 5V - 500mA; 3.3V - 50mA
Connector: Mini USB
Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration
Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, RS232) at TTL levels
128 byte receive buffer and 256 bytes transmit buffer
Transmit and receive LED drive signals
Fully integrated clock generation with no external crystal required
