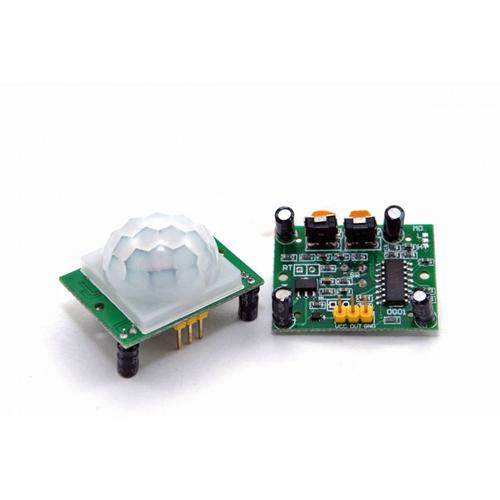

Pir Sensor HW-416B PIR Motion Sensor Module Arduino Raspberry Pi

spesifikasi Pir Sensor HW-416B note : Pir Sensor HW-416B memiliki spesifikasi yang sama dengan Pir Sensor HC-SR501 Features: Automatic induction: When someone enters the induction range, he enters a high level, and when he leaves the induction range, he automatically delays closing the high level. Photosensitive control (optional): Module reserved position, can be set up photosensitive control, day or light intensity is not sensitive. Two trigger modes: L is not repeatable and H can be repeated. Jumper selection, defaults to H Inductive blocking time (default setting: 3-4 seconds). Wide operating voltage range: default operating voltage DC5V to 20V Micro power consumption: quiescent current 65 microamps, especially suitable for dry battery powered electrical products. Output high level signal: it can be easily connected with all kinds of circuits. Specifications: Model: HW-416 Product model: HC--SR501 human body induction module Working voltage range: DC voltage 4.5-20V Quiescent current: lt;50uA Level output: high 3.3 V / low 0V Trigger mode: L can not repeatedly trigger /H repeat trigger (default repeat trigger). The delay time is 0.5-200S (adjustable), which can be made in the range of zero seconds and dozens of minutes. Blocking time: 2.5S (default) can be made in the range of zero seconds - tens of seconds. Circuit board size: 32mm*24mm Induction angle: lt;100 cone angl Working temperature: -15-+70 degree Induction lens size: diameter: 23mm
