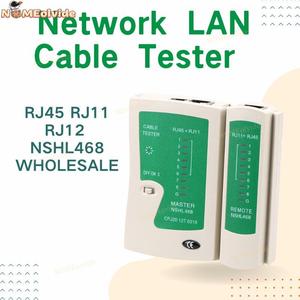

RJ45 RJ11 RJ12 CAT5 UTP Network LAN Cable Tester Networking Wire Telep

Produk Import 15-20 harian, Harap pastikan kakak tidak buru-buru membutuhkannya 2 in 1 Multi-function MINI TESTER Product brand OEM Product name Network tester Product model JS-468 Product size ≈ 10.5cm*10.5cm*2.6cm Product weight 200g Product function RJ45 RJ11 test Product colour Green Instructions 1 . Twisted pair 1,2,3,4,5,6,7,8, G line one by one (to) test, can determine which distinguish a (for) the wrong line, short circuit and open circuit. 2 . Switch to the ON position for the normal test speed adjustment knob to adjust the tooth test speed, the speed indicator corresponding display 3 . Twisted pair test: Turn on the power, the network cable plugs were inserted into both main tester and remote tester host from 1 to G by one indicator flashing sequence, normally as follows: Main Tester: 1-2-3-4-5-6-7-8-G Remote tester: 1-2-3-4-5-6-7-8-G (RJ45) If the wiring is not normal, according to the following cases show: A. When there is a network cable, such as the 3rd line circuit, the main tester and remote tester 3 lights are not bright. B. When there are several lines unreasonable, then a few lines are off, when the cable is less than 2 wire communication, the lights are not bright. C. When the two lines out of order, for example, 2,4 lines out of order, the display is as follows: Main tester unchanged: 1-2-3-4-5-6-7-8-G Remote tester is: 1-4-3-2-5-6-7-8-G D. When the cable has two short circuit, the main tester display is not lit, and remote tester display two lines shorted lights are shimmering, if three or more (including three) short circuit shorted a few all Light line numbers are not bright. If test network cable between patch pnels and wall seat module, you need two matching jumper lead to the tester RJ45 RJ11 RJ12 CAT5 UTP Network LAN Cable Tester Networking Wire Telephone Line Detector Tracker Tool NSHL468 Wholesale Components Access Points NB ; Lakukan Video UNBOXING saat paket tiba
