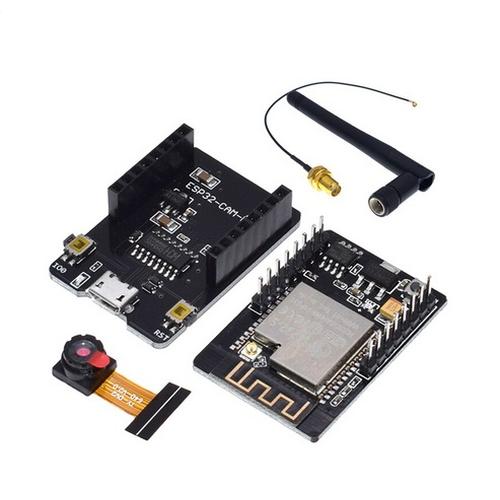

Esp32-Cam-Mb 5v Wifi Bluetooth Development Board Ov2640 Modul + Antena
Rp187.100
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: MODUL GSM GPRS WIFI INTERNET
Introduction:
The HK-ESP32-CAM-MB module is a small camera module with a size of 39.8*27*. This module can work independently as the smallest system. A new WiFi+Bluetooth dual-mode development board based on ESP32 design, using PCB on-board antenna, with 2 high-performance 32-bit LX6CPU, using 7-level pipeline architecture, main frequency adjustment range 80MHz to 240Mhz. Ultra-low power consumption, deep sleep current is as low as 6mA. It is an ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module HK-ESP32-CAM-MB adopts Micro USB interface, convenient and reliable connection method, convenient to apply to various IoT hardware terminal occasions.
HK-ESP32-CAM-MB adopts Micro USB interface, convenient and reliable connection method, convenient to apply to various IoT hardware terminal occasions.
Basic performance parameters
1. Use low-power dual-core 32-bit CPU, which can be used as an application processor.
2. The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
3. Built-in 520 KB SRAM, external 8MB PSRAM
4. Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
5. Support OV2640 and OV7670 cameras, built-in flash
6. Support picture WiFI upload
7. Support TF card
8. Support multiple sleep modes.
9. Embedded Lwip and FreeRTOS
10. Support STA/AP/STA+AP working mode
11. Support Smart Config/AirKiss one-click network configuration
12. Support secondary development
Application scenarios
1. Home smart device image transmission
2. Wireless monitoring
3. Smart agriculture
4. QR wireless recognition
5. Wireless positioning system signal
6. And other IoT applications
Package Include:
1 Set HK-ESP32-CAM-MB 5V WIFI Bluetooth Development Board USB + Antenna
The HK-ESP32-CAM-MB module is a small camera module with a size of 39.8*27*. This module can work independently as the smallest system. A new WiFi+Bluetooth dual-mode development board based on ESP32 design, using PCB on-board antenna, with 2 high-performance 32-bit LX6CPU, using 7-level pipeline architecture, main frequency adjustment range 80MHz to 240Mhz. Ultra-low power consumption, deep sleep current is as low as 6mA. It is an ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module HK-ESP32-CAM-MB adopts Micro USB interface, convenient and reliable connection method, convenient to apply to various IoT hardware terminal occasions.
HK-ESP32-CAM-MB adopts Micro USB interface, convenient and reliable connection method, convenient to apply to various IoT hardware terminal occasions.
Basic performance parameters
1. Use low-power dual-core 32-bit CPU, which can be used as an application processor.
2. The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
3. Built-in 520 KB SRAM, external 8MB PSRAM
4. Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
5. Support OV2640 and OV7670 cameras, built-in flash
6. Support picture WiFI upload
7. Support TF card
8. Support multiple sleep modes.
9. Embedded Lwip and FreeRTOS
10. Support STA/AP/STA+AP working mode
11. Support Smart Config/AirKiss one-click network configuration
12. Support secondary development
Application scenarios
1. Home smart device image transmission
2. Wireless monitoring
3. Smart agriculture
4. QR wireless recognition
5. Wireless positioning system signal
6. And other IoT applications
Package Include:
1 Set HK-ESP32-CAM-MB 5V WIFI Bluetooth Development Board USB + Antenna
