433Mhz Transmitter Receiver Module RF 433 Mhz Modul - 1Set(TX+RX)
Rp8.800
Pilih ukuran: 1Set(TX+RX)
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Remote RF
Receiver module parameters:
1.Product Model: MX-05V
2.Operating voltage: DC5V
3.Quiescent Current: 4MA
4.Receiving frequency: 433Mhz
5.Receiver sensitivity:-105DB
6.Size: 30 * 14 * 7mm
7.External antenna: 32CM single core wire, wound into a spiral

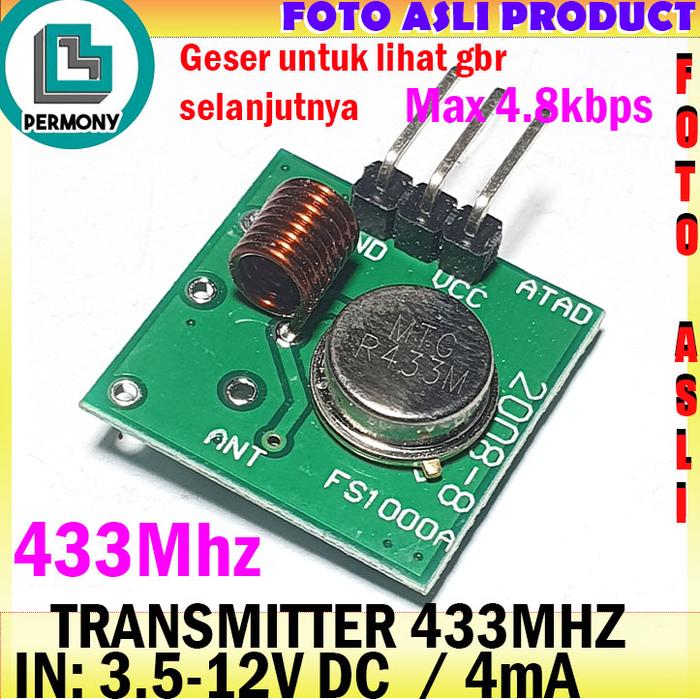

Transmitter module parameters:
1.Product Model: MX-FS-03V
2.Launch distance :20-200 meters (different voltage, different results)
3.Operating voltage :3.5-12V
4.Dimensions: 19 * 19mm
5.Operating mode: AM
6.Transfer rate: 4KB / S
7.Transmitting power: 10mW
8.Transmitting frequency:433Mhz
9.An external antenna: 25cm ordinary multi-core or single-core line
10.Pinout from left → right: (DATA; VCC; GND)
1.Product Model: MX-05V
2.Operating voltage: DC5V
3.Quiescent Current: 4MA
4.Receiving frequency: 433Mhz
5.Receiver sensitivity:-105DB
6.Size: 30 * 14 * 7mm
7.External antenna: 32CM single core wire, wound into a spiral
Transmitter module parameters:
1.Product Model: MX-FS-03V
2.Launch distance :20-200 meters (different voltage, different results)
3.Operating voltage :3.5-12V
4.Dimensions: 19 * 19mm
5.Operating mode: AM
6.Transfer rate: 4KB / S
7.Transmitting power: 10mW
8.Transmitting frequency:433Mhz
9.An external antenna: 25cm ordinary multi-core or single-core line
10.Pinout from left → right: (DATA; VCC; GND)
