Atur jumlah dan catatan
Stok: Habis
Subtotal
-

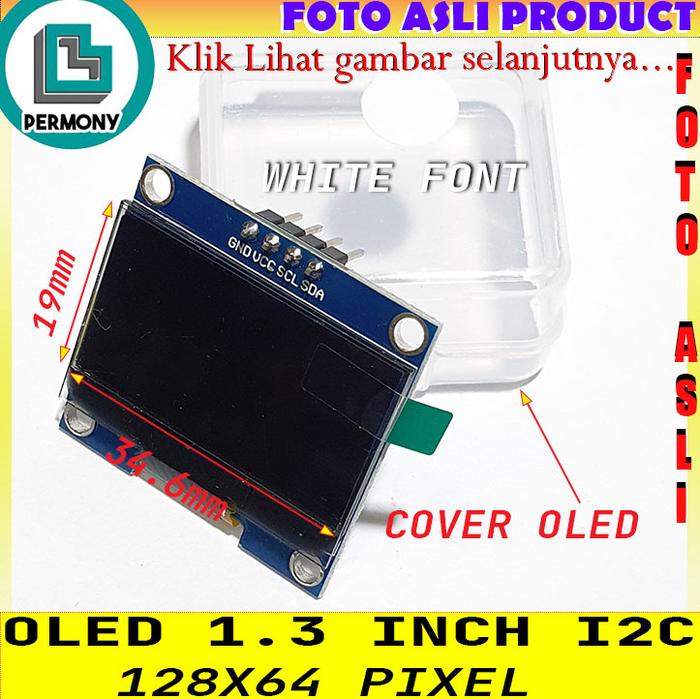

Oled 1.3 Inch IIC I2C 128x64 LCD Display Module - BluePCB_White
Rp39.900
Pilih warna: BluePCB_White
Stok varian ini habis. Simpan di Wishlist untuk diingatkan ketika barang kembali tersedia.
- Kondisi: Baru
- Min. Pemesanan: 2 Buah
- Etalase: LCDOLED DISPLAY
Layar Lebih Lebar
Pembeli perlu membaca :
NO Complain
NO Retur
Barang sudah di Test OK
Membeli = setuju
PERHATIAN YA GAN !!!
PEMASANGAN VCC GND TERBALIK BISA MERUSAK OLED..
PinOuts:
VCC: 3.3V~5V
GND: Ground
SCL: I2C Serial Clock (UNO: A5; MEGA: 21)
SDA: I2C Serial Data (UNO: A4; MEGA: 20)
DRIVER SSH1106
1.3 Inch IIC I2C OLED 128x64 Display Module SSH1106
Specification:
Size: 1.3”
Driver IC: SSH1106
Voltage: 3.3V-5V DC
Viewing angle: > 160°
High resolution: 128 x 64
Working Temperature: -30°C~70°C
Screen material: glass, need good protection
★Paket yg didapat★
1 pcs ★Oled 1.3 Inch IIC I2C 128x64 LCD Display Module★
1 set ★ pin header ★
Pembeli perlu membaca :
NO Complain
NO Retur
Barang sudah di Test OK
Membeli = setuju
PERHATIAN YA GAN !!!
PEMASANGAN VCC GND TERBALIK BISA MERUSAK OLED..
PinOuts:
VCC: 3.3V~5V
GND: Ground
SCL: I2C Serial Clock (UNO: A5; MEGA: 21)
SDA: I2C Serial Data (UNO: A4; MEGA: 20)
DRIVER SSH1106
1.3 Inch IIC I2C OLED 128x64 Display Module SSH1106
Specification:
Size: 1.3”
Driver IC: SSH1106
Voltage: 3.3V-5V DC
Viewing angle: > 160°
High resolution: 128 x 64
Working Temperature: -30°C~70°C
Screen material: glass, need good protection
★Paket yg didapat★
1 pcs ★Oled 1.3 Inch IIC I2C 128x64 LCD Display Module★
1 set ★ pin header ★
