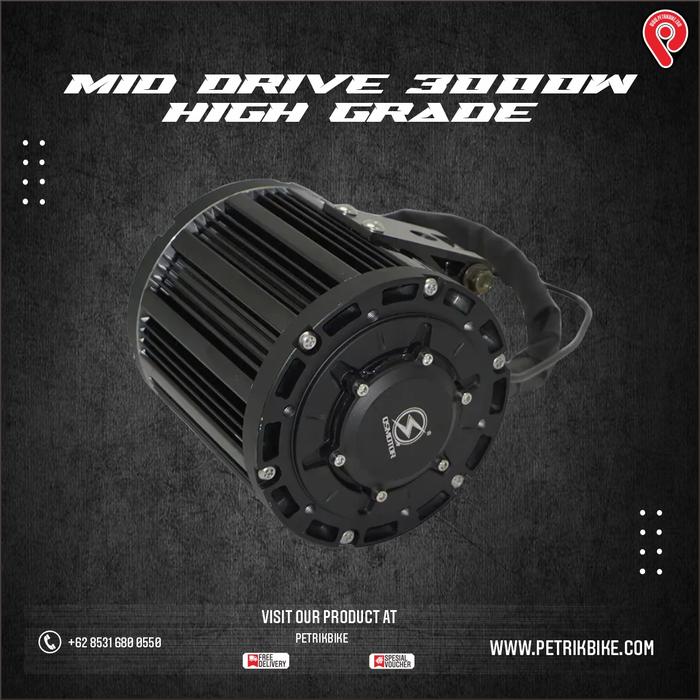

Dinamo bldc 72volt 3000watt QS mid drive motor listrik II PetrikBike

QS Motor 3000W 138 70H Mid Drive Motor Drive type: By Chian(428 Type) Sprocket:428-14T, 428-16T etc. Motor type:BLDC Permanent Magnet Inner Rotor Motor With Hall Sensor Magnets:Height 70mm, 40pcs, 5 pole pairs Diameter of stator: 138mm Rated Power: 3000W Max. power:5900W Rated Voltage: 72V as default Max. Speed: 90KPH (With 12inch wheel after 1:4.7 ratio) No-load rpm: 4400rpm without flux weakening, 6500RPM with flux weakening. Max Torque: approx 56N.m (without Reduction ratio) Max Efficiency: 90% Peak Battery Current: 120A (72V) Max.Peak Phase Current: 450A Single Hall Plate with waterproof connectors Cross Section of Phase Wire: 16mm2 Hall Sensor Phasing angle: 120 degree
