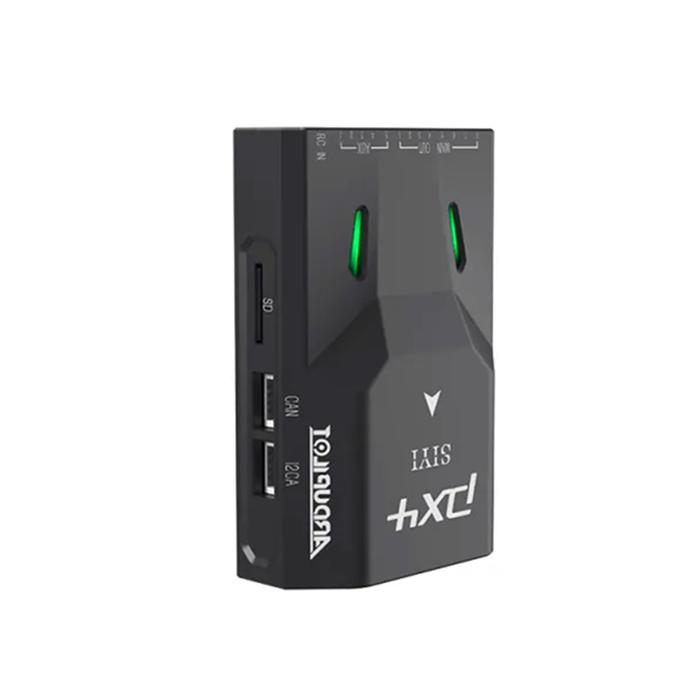

SIYI N7 Autopilot Flight Controller Compatible with PX4 Ecosystem M9N GPS / 2-14S Power Module For Drone UAV UGV USV Robotics

SIYI N7 Autopilot Flight Controller Compatible with PX4 Ecosystem M9N GPS / 2-14S Power Module For Drone UAV UGV USV Robotics 1005006031580972 Pre-Order +/- Sampai Alamat 10-15 Hari FREE ONGKIR+PAJAK Garansi uang kembali jika Rusak, Beda Produk Quantity : 1 pcs Wheelbase : Screws Size : 47 x 68 x 19 mm Technical parameters : Value 2 Model Number : SY-N7-GPS For Vehicle Type : Airplanes Tool Supplies : Assembly Category Four-wheel Drive Attributes : Assemblage Upgrade Parts/Accessories : Base C RC Parts amp; Accs : Radio Systems Material : Composite Material Brand Name : Feetech Origin : Mainland China Recommend Age : 14+y,6-12y Use : Vehicles amp; Remote Control Toys SIYI N7 Autopilot Flight Controller Compatible with PX4 Ecosystem M9N GPS / 2-14S Power Module For Drone UAV UGV USV Robotics Specification Hardware Main Processor: STM32H743IIK6 (32 Bit Arm Cortex-M7, 480 MHz, 2 MB memory, 1 MB RAM) Coprocessor: STM32F103 (32 Bit Arm Cortex-M3, 72 MHz, 20 KB SRAM) Sensors Accelerometer / Gyro: BMI088 / ICM20689 Electronic Compass: IST8310 Barometer: MS5611 External Interface UART Serial Port: 4 I2C: 3 CAN: 1 PWM Output: - 8 x Standard PWM IO - 5 x Programmable IO RC Input (SBus): 1 Power Module Input: 1 GPS amp; Safety: 1 USB (Type-C): 1 TF Slot: 1 Overall Compatible Model: PX4 / Ardupilot Firmware (Planes / Multirotors / Helicopters / VTOL / UGV / USV) Power Module Voltage Input: 4.5 ~ 5.5 V USB Voltage Input: 5 V ( 0.25 V) Servo Voltage: 0 ~ 10 V Working Temperature: -20 ~ 65 Product Dimension: 47 x 68 x 19 mm Product Weight: 57 g SIYI N7 Autopilot Flight Controller Compatible with PX4 Ecosystem M9N GPS / 2-14S Power Module For Drone UAV UGV USV Robotics Specification Hardware Main Processor: STM32H743IIK6 (32 Bit Arm Cortex-M7,
