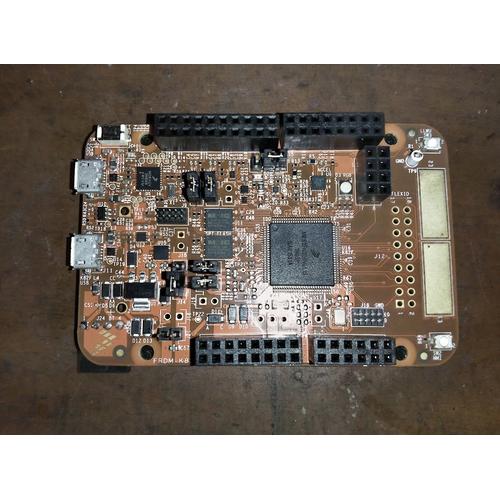

FRDM-K82F: NXP Freedom Development Platform (Freescale ARM)
Rp600.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Raspberry Pi
Ini adalah sebuah Development Board berbasis mikrokontroler ARM M4 yang berasal dari NXP.
Fitur yang dimiliki antara lain:
-Kinetis MK82FN256VLL15 MCU (ARM Cortex-M4 @150 MHz, 256KB SRAM, USB, advanced security)
-Kinetis K20DX128VFM5 MCU based OpenSDA circuit
-Two 32 Mbit (4MB) dual on-board QuadSPI memory @ 1.8V
-Dual independent voltage domains: VDD and VDDIO_E
-FXOS8700CQ - accelerometer and magnetometer
-Three user-controlled status LEDs
-Two mechanical push buttons for user input, and one for reset
-USB support onboard with micro USB cable
-FlexIO header compatible with OV7670 camera
-Easy access to MCU input/output through Arduino R3 compatible I/O connectors
-Flexible power supply option - OpenSDAv2.1 USB, Kinetis K82 USB, and external source
-Easy access to MCU input/output through Arduino R3 compatible I/O connectors
-Programmable OpenSDAv2 debug circuit supporting the CMSIS-DAP interface software that provides:
-Mass storage device (MSD) flash programming interface
-CMSIS-DAP debug interface over a driver-less USB HID connection providing run-control debugging and compatibility with IDE tools
-Virtual serial port interface
-Open source CMSIS-DAP software project
Board ini cocok untuk Robotik dan project-project kelas industri dengan berbagai macam fitur yang dimilikinya.
Lebih jelas mengenai Development Board ini silahkan klik link berikut:
http://www.nxp.com/products/software-and-tools/run-time-software/kinetis-software-and-tools/ides-for-kinetis-mcus/freescale-freedom-development-platform-for-kinetis-k82-k81-and-k80-mcus:FRDM-K82F
Fitur yang dimiliki antara lain:
-Kinetis MK82FN256VLL15 MCU (ARM Cortex-M4 @150 MHz, 256KB SRAM, USB, advanced security)
-Kinetis K20DX128VFM5 MCU based OpenSDA circuit
-Two 32 Mbit (4MB) dual on-board QuadSPI memory @ 1.8V
-Dual independent voltage domains: VDD and VDDIO_E
-FXOS8700CQ - accelerometer and magnetometer
-Three user-controlled status LEDs
-Two mechanical push buttons for user input, and one for reset
-USB support onboard with micro USB cable
-FlexIO header compatible with OV7670 camera
-Easy access to MCU input/output through Arduino R3 compatible I/O connectors
-Flexible power supply option - OpenSDAv2.1 USB, Kinetis K82 USB, and external source
-Easy access to MCU input/output through Arduino R3 compatible I/O connectors
-Programmable OpenSDAv2 debug circuit supporting the CMSIS-DAP interface software that provides:
-Mass storage device (MSD) flash programming interface
-CMSIS-DAP debug interface over a driver-less USB HID connection providing run-control debugging and compatibility with IDE tools
-Virtual serial port interface
-Open source CMSIS-DAP software project
Board ini cocok untuk Robotik dan project-project kelas industri dengan berbagai macam fitur yang dimilikinya.
Lebih jelas mengenai Development Board ini silahkan klik link berikut:
http://www.nxp.com/products/software-and-tools/run-time-software/kinetis-software-and-tools/ides-for-kinetis-mcus/freescale-freedom-development-platform-for-kinetis-k82-k81-and-k80-mcus:FRDM-K82F
