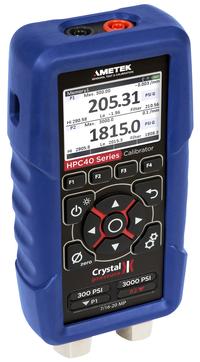

AMETEK Crystal HPC40 series Combined Pressure & mA Loop Calibrator with Dual Pressure sensors and BARO Module [HPC42-BARO-IA]

AMETEK Crystal HPC42 (Dual Sensor) Pressure amp; mA Loop Calibrator with BARO Module Made in USA Perform Simultaneous Task with one single device!! 3 Pressure measurements (DP and one additional static pressure reading with APM module, not included) Temperature measurement (high accuracy temperature reading) Current and Voltage measurement (Source 24VDC to Transmitter and Reads Voltage or 4-20 mA input from Transmitter ) mA Loop Power (Inject 24VDC to Transmitter) Switch Test mode to easily capture Open, Closed, and Deadband Range Easy to combine with other AMETEK Calibration products to form complete calibration system. Unit Configuration : • Number of Sensors : 2 (Dual Pressure Fixed Ports) • Pressure Range Selection : From 30 psi to 15000 psi / 3 bar to 1000 bar • Differential Pressure (DP) reading • Additional Pressure Ports : One additional pressure reading with external APM module • Additional Temperature Ports : One additional temperature reading with external ATM module • BARO reading available • Current and Voltage measurement : Can read max 45 VDC input • mA Loop Power : Yes, can source out 24 VDC • Connection to Computer : mini-USB cable • IP65, Machined Aluminum Body Material with Blue Colored UV Resistant Silicone Cover Accuracy : • Accuracy of up to ±0.035% of reading for high pressure, and ±0.01% of F.S. for low pressure • Vacuum Accuracy of ±0.05% of F.S. (Vacuum F.S.) Sudah termasuk Certificate of Conformance dan NIST-Traceable Calibration Certificate (ISO 17025) yang keduanya dikeluarkan oleh pabrik. Barang kami dijamin keasliannya dan dalam kondisi baru (bukan unit refurbished). Bergaransi selama 1 (Satu) Tahun dari tanggal delivery oleh Authorized Indonesia distributor. Barang indent 4 weeks ARO
