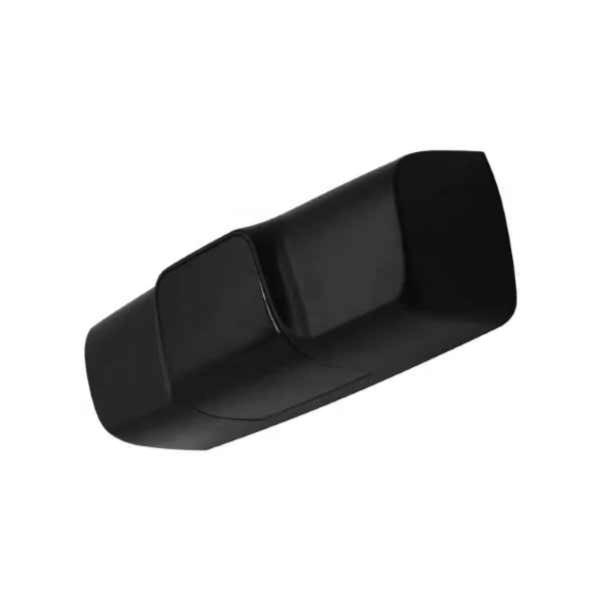

Automatic Sliding Door Sensor Gerak Pintu Otomatis - Hitam

Sensor Gerak Pintu Otomatis

-Harga 1pcs

Specifications :
Applied to all kinds of auto-door sensor switch and with the feature of high sensitivity and strong reliability.
Feature:
1) Applied to all kinds of auto-door sensor switch, which could be induced to the human body movement and then triggered the automatic door opening and closing;
2) With the feature of high sensitivity and strong reliability ;
3) The detection distance and range are adjustable;
4) Installation height is 2m - 4m;


Technical Data
Overall dimension: 142MM (length) ×46MM (width) ×45MM (height)
Emission frequency density: <5MW/CM
Maximum installation height: 4M
Installation Angle: 15°-45°
Maximum testing range: 4M (wide) ×2M (deep) (when the installation height is 2.2m
Detection mode: movement
Minimum detection speed: 5CM/S (test along the vertical and horizontal axis of the antenna)
Power supply voltage: 12v-24vac +/-10%;The 12 v - 30 VDC
Power supply frequency: 50~60Hz
Consumed power: <2W (VA)
Maximum contact voltage: 42VAC~60VDC
Maximum contact current: 1A(resistance)
Maximum switching power: 30W (DC) /60VA(AC)
Holding time: 0.5s
Temperature range: -20℃~+55℃
Protection grade: IP52
Housing color: black & Grey
