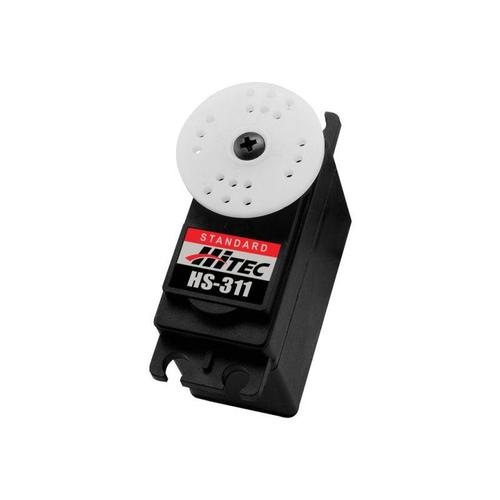

Hitec Servo HS-311 Standard Economy Servo

HS-311 Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.19 ~ 0.15
Maximum Torque Range oz. / in. 42 ~ 49
Maximum Torque Range kg. / cm. 3.0 ~ 3.5
Current Draw at Idle 7.7 mA
No Load Operating Current Draw 180 mA
Stall Current Draw 800 mA
Dead Band Width 5 µs
Physical Specifications
Dimensions (Inches) 1.57 x 0.78 x 1.43
Dimensions (Metric) 40.0 x 20.0 x 36.5
Weight (Ounces) 1.51
Weight (Gram) 43.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type None
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
Radio Control Applications
Parkflyer N / A
Sport Plane 50 - 64 oz.
Sailplane N / A
3D Performance N / A
Scale 50 - 64 oz.
Electric Helicopter N / A
Gas Helicopter N / A
On Road 1/8th
Monster Truck 1/8th
Buggies 1/8th
Truggies 1/8th
Short Course / Truck 1/8th
Crawlers 1/8th
Sail Boat < 1 meter
Power Boat 1/10th
