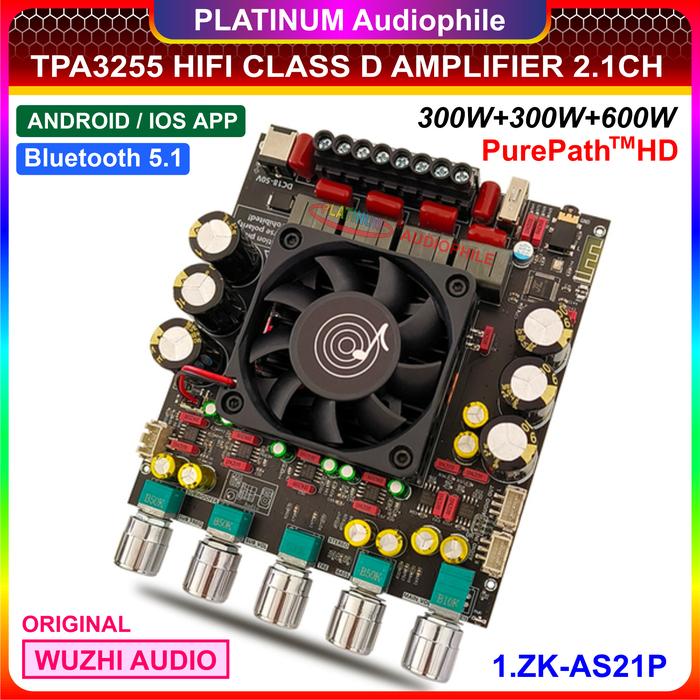

TPA3255 Amplifier Class D 2.1CH Bluetooth 5.1 Stereo + Subwoofer 2x 300W + 600W Original ZK-AS21P AS21PX - 1. ZK-AS21P

Harga di atas untuk 1 PCS
Wajib video UNBOXING paket yang lanjut dengan pengetesan produk.
Komplain tidak dapat kami layani apabila :
-Tanpa video Unboxing
-Video yang di buat setelah membuka paket
-Salah memesan barang
-Kesalahan pemasangan / human error
-Bekas solder / komponen lepas / terbakar
-Ulasan negatif / balasan chat yang tidak baik
"Komplain barang kurang / barang tidak sesuai pesanan wajib video unboxing"
Semua produk akan dilakukan pengecekkan fisik dan Test produk sebelum dilakukan pengiriman.
di pastikan barang dalam kondisi baik dan dipacking seaman mungkin dengan kardus dan bubble wrap.
Kami tidak bertanggung jawab atas terjadinya masalah/kerusakan pada saat pengiriman yang dilakukan expedisi/kurir.
Jika ada kendala jangan sungkan beritahu kami.
Terima Kasih..

Product parameter :
Brand : Original Wuzhi Audio
Model 1 : ZK-AS21P (Potentiometer Internal)
Model 2 : ZK-AS21PX (Potentiometer External)
Output Power : 2.1CH 300W + 300W + 600W
Adapted power supply : 18-50VDC,
Recommended DC power supply 36-48V 12A or above.

Maximum power:
L & R CH 300W@50V, 4 ohm 160W@50V, 8 ohm
Subwoofer 600W@50V, 2 ohm 300W@50V , 4 ohm160W@50V , 8 ohm
In short, the higher the voltage, the smaller the resistance, and the greater the output power

BT chip : JL 5.1 transmission distance 15 meters
Input method : BT+AUX+USB disk/Sound card
Power AMP chip : Dual Original TPA3255
Protection : Input under voltage, overheating, over current, short circuit protection.
No input anti reverse protection, positive and negative poles cannot be reversed!

Power comparison between TPA3251 and TPA3255
Chip model : TPA3251,TPA3255
Fixed gain : TPA3251 20dB, TPA3255 21.5dB
Working voltage range : TPA3251 12-36VDC, TPA3255 18-53.5VDC
Stereo (BTL) : TPA3251 350W, TPA3255 600W

Power at different THD+N :

TPA3251
•Total output power at a total harmonic distortion + noise (THD+N) of 10%,
- 175W/4 ohm , bridged load (BTL) stereo
- 220W/3 ohm , bridged load (BTL) stereo
- 350W/2 ohm , parallel bridged load (PBTL) mono
•Total output power at 1% THD+N
- 140W/4 ohm , BTL stereo
- 175W/3 ohm , BTL stereo
- 285W/2 ohm , PBTL mono

TPA3255
•Total output power at a total harmonic distortion + noise (THD+N) of 10%,
- 315W/4 ohm , BTL stereo
- 185W/8 ohm , BTL stereo
- 600W/2 ohm , PBTL mono
•Total output power at 1% total harmonic distortion + noise (THD+N)
- 260W/4 ohm , BTL stereo
- 175W/3 ohm , BTL stereo
- 285W/2 ohm , PBTL mono

Power comparison between TPA3251 and TPA3255
Chip model: TPA3251, TPA3255

Fixed gain:
TPA3251 20dB,
TPA3255 21.5dB

Working voltage range:
TPA3251 12-36VDC,
TPA3255 18-53.5VDC

Stereo (BTL):
TPA3251 350W,
TPA3255 600W

Power at different THD+N:
TPA3251

•Total output power at a total harmonic distortion + noise (THD+N) of 10%,
- 175W/4 ohm , bridged load (BTL) stereo configuration,
- 220W/3 ohm , bridged load (BTL) stereo configuration,
- 350W/2 ohm , parallel bridged load (PBTL) mono configuration

•Total output power at 1% THD+N
- 140W/4 ohm , BTL stereo configuration
- 175W/3 ohm , BTL stereo configuration
- 285W/2 ohm , PBTL mono configuration

TPA3255
•Total output power at a total harmonic distortion + noise (THD+N) of 10%,
- 315W/4 ohm , BTL stereo configuration,
- 185W/8 ohm , BTL stereo configuration,
- 600W/2 ohm , PBTL mono configuration

•Total output power at 1% total harmonic distortion + noise (THD+N)
- 260W/4 ohm , BTL stereo configuration
- 175W/3 ohm , BTL stereo configuration
- 285W/2 ohm , PBTL mono configuration
