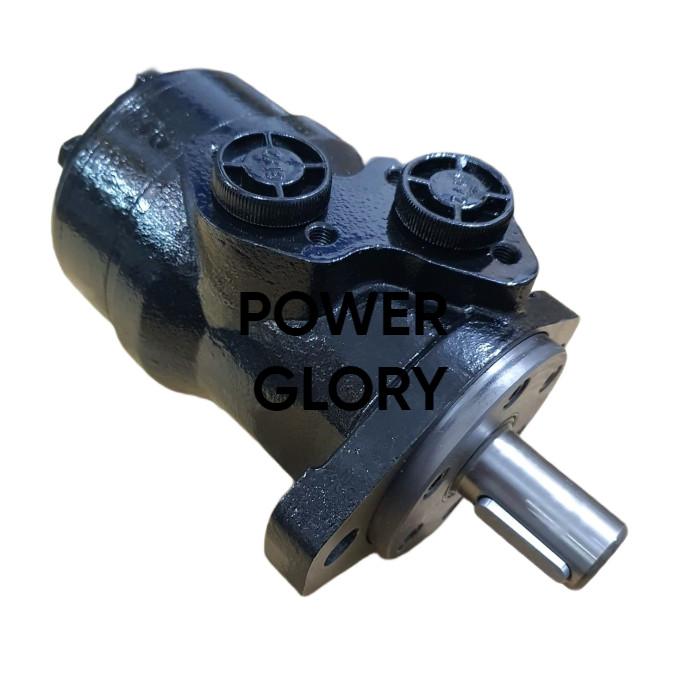

Orbit Motor hidrolik BMR 50cc as 254mm Hydraulic Orbital Motor

BMR tersedia : 50cc, 125cc, 160cc
--------------------------------------------------------------
--------------------------------------------------------------
-Type produk : BMR-50
-body bulat - mounting 2
-volumetric displacement : 50cc
--------------------------------------------------------------
-max speed. : 960 - 1.150 rpm
-max torsi. :Continue 100Nm, Intermittent 125Nm, Peak 165Nm
-max output. : 9,5KW
-max pressure : 140 -175 Bar
-max flow. : 50- 60 Liter PerMenit
--------------------------------------------------------------
-port/lobang drat : 1/2 - BSP
-shaf/as : 25,4 mm (1 in) - spi
-lebar spi (key) : 6,4 mm
-hap/spigot diameter : 82,5 mm
-bolt circle diameter : 106,4 mm
--------------------------------------------------------------
-manufacturing : Oleo Motor/China

NB:
-OleoMotor type BMR dan BMRS specnya sama(bedanya dibentuk bodynya dan diletak portnya saja)
-kekuatan/torsi motor sama dgn type motor OMR(Danfoss), S-series(Eaton), dll
-Silahkan chat untuk info detailnya 08112000686
-terimakasih
