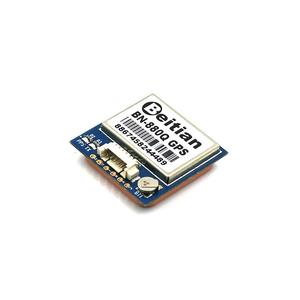

PART Beitian BN-880Q GPS+GLONASS Dual GPS Antenna Module FLASH TTL
Rp2.131.000
- Kondisi: Baru
- Waktu Preorder: 20 Hari
- Min. Pemesanan: 1 Buah
- Etalase: RC Parts
Beitian BN-880Q GPS+GLONASS Dual GPS Antenna Module FLASH TTL Level 9600bps for FPV Airplane RC Racing Drone
Semua Produk Di Toko Kami PO (Personal Pre-Order) 7-10 Hari. Harap Chat Terlebih Dahulu Sebelum Order Atau Anda Setuju Dengan Waktu Pre-Order Yang Kami Tetapkan Secara Default 15-Hari
Description:
Brand name: BeitianItem name: BN-880Q GPS+Glonass antenna module Parameters
Description
Chip features Chip M8030-KT
Frequency LPS L1, GLONASS L1, BEIDOU B1,GALILEO E1, SBAS L1, QZSS L1
Working mode GPS, GLONASS, BEIDOU, GALILEO, SBAS and QZSS.
Default GPS+GLAONASS+SBAS+QZSS
Channel 72 searching channel
Sensitivity Track -167dBm
Recapture -160dBm
Cold start -148dBm
Hot start -156dBm
Precision Horizontal accuracy 2.0 m CEP 2D RMS SBAS assist (open space)
Speed accuracy 0.1m/s 95%(SA off)
Time accuracy 1us
Startup time Cold start 26s
Warm start 25s
Hot start 1s
Output data Baud rate 4800bps-921600bps, default 9600bps
Output level TTL
Output protocol NMEA-0183 or UBX, default NMEA-0183 protocol
NMEA sentences RMC, VTG, GGA, GSA, GSV, GLL
Update frequency 1Hz-10Hz, default 1Hz
FLASH 4M FLASH, The configuration can be changed and will not be lost after power off
Working limit Height 50,000m max
Speed 515m/s max
Gravity acceleration 4g max
Power consumption Voltage DC 3.0V-5.5V, typical: 5.0V
Current Normal 50mA@5.0V
Physical parameter Size 28mm*28mm*8mm
Weight 12g
Connector 1.25 pitch 6pin carrier
Environment Operate temperature -40°C~+85°C
Storage temperature -40°C~-+105°C
Indicator light TX light Blue light flashing when power-on, indicated that there is data output
light The light is not lit when it is not positioned; after 3D positioning, it starts to blink.
Compass Compass With internal electronic compass QMC5883
BN-880Q GPS integrated module
Pins of the module:
1. SDA.
2. GND, ground.
3. TX, the data output of the module.
4. RX, the data input of the module.
5. VCC, 3.0V--5.5V.
6.
ID - 1450469
