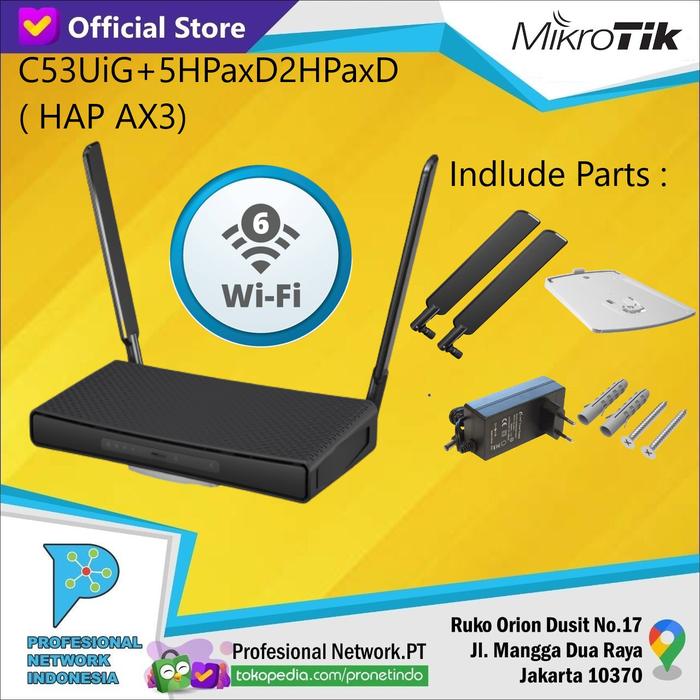

Mikrotik hAP ax3 ax 3 C53UiG+5HPaxD2HPaxD mikrotik hap ax3 hap ax 3

Mikrotik hAP ax3 ax 3 C53UiG+5HPaxD2HPaxD

Specifications
Details
Product code C53UiG+5HPaxD2HPaxD
Architecture ARM 64bit
CPU IPQ-6010
CPU core count 4
CPU nominal frequency auto (864 - 1800) MHz
RouterOS license 6
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes

Wireless capabilities
Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 3.3
Wireless 2.4 GHz chip model QCN-5022
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model QCN-5052
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX1800

Ethernet
Details
10/100/1000 Ethernet ports 4
Number of 1G Ethernet ports with PoE-out 1
Number of 2.5G Ethernet ports 1

Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1

Powering
Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 38 W
Max power consumption without attachments 15 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V

PoE-out
Details
PoE-out ports Ether 1
PoE out Passive PoE
Max out per port output (input 18-30 V) 0.625 A
Max total out (A) 0.625 A
Total output current 0.625
Total output power 15

Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS

Other
Details
CPU temperature monitor Yes
Mode button Yes
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -100
11MBit/s 27 -94
6MBit/s 29 -96
54MBit/s 27 -80
MCS0 29 -96
MCS7 26 -75
MCS9 24 -70
MCS11 22 -67
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -96
54MBit/s 26 -80
MCS0 28 -96
MCS7 25 -75
MCS9 23 -70
MCS11 20 -6
