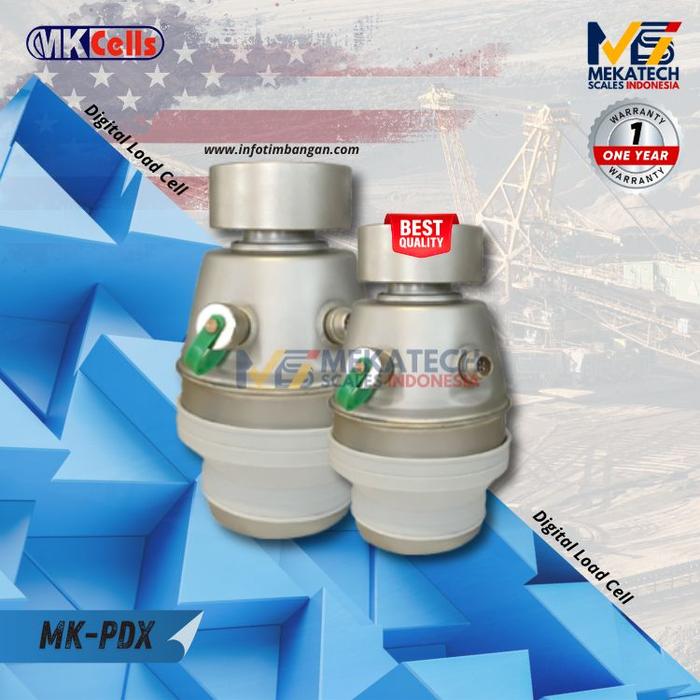

Load Cell Sensor Berat Jembatan Timbang Digital MKCELLS MK-PDX Kapasitas 30T

Untuk Jembatan Timbangan Tipe Digital

MKCELLS DIGITAL LOAD CELL TYPE MK-PDX Kapasitas 30 Ton

MERK : MKCELLS
TYPE : MK-PDX DIGITAL LOAD CELL
CAPACITY : 30 Ton
WARRANTY : 1 YEAR
MADE IN : USA

FEATURE :
- High accuracy
- No junction box installation
- Water proof and lightening protection
- Upper and lower inhibitors design, Easy installation
- Radio frequency interference
- Dynamic response, and super capacity for anti-overload
- High quality stainless steel construction
- Hermetically sealed IP69K protection class
- PVC anti rat cable protection, high temperature
- Quick connection cable
- Truck scale, hopper scale, and tank weighing application
- Compatible for all MK Digital Indicator

SPECIFICATION :
- Rated load : 30t
- Rated Output : 30000
- Digital Refurbishing Frequency : 15
- Communication BPS : 9600BPS/19200BPS
- Combined Error : 0.02% F.S
- Creep (30 min) : 0.02% F.S
- TC ZERO : 0.02% F.S/10C
- TC SPAN : 0.02% F.S/10C
- Insulation resistance : 2000M
- Nominal Temp Range : -10C~+40C
- Service Temp Range : -30~+70C
- Safe load limit : 150%F.S
- Breaking load : 300%F.S
- Protection class : IP69K
- Recommended Excitation : 9~12VDC
- Maximum Excitation : 20VDC
- Material : Stainless Steel

MORE INFO - - - - - - - - - - - - - - - - - - - -

PT MEKATECH SCALES INDONESIA
Graha Juanda Blok C No. 6, Damarsi, Kec. Buduran, Kab. Sidoarjo
Jawa Timur 61252
Tlpn. 031-99608365 HP. 0823-3334-5644
www.infotimbangan.com
