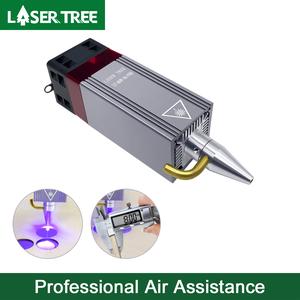

LASER TREE 10W High Power Laser Module with Air Assist Metal Nozzle TTL Laser Head for CNC Engraving Cutting Machine DIY Tools
Rp6.706.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
SELAMAT DATANG DI TOKO KAMI
Brand Name : Laser Tree
Model Number : LT-80W-AA
Origin : Mainland China
Certification : CE
Hign-concerned Chemical : None
Compatible Machines : Ort**/Atomst***/Sculpf**/Zbai**/Two t*** etc
LASER TREE 450nm 80W High Power Laser Head with Air Assist, Metal Nozzle, TTL / PWM Cutting Engraving Laser Module
LT-80W-AA-PRO Features
1.LT-80W-AA-Pro
It has an upgraded nozzle compared to the previous LT-80W-AA. The difference of this nozzle is that it has an advanced hydrodynamic design that makes better use of air pressure. When using the same air compressor, the upgraded version has a faster jet airflow.
2.With the Air Asssit Nozzle
The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.
Air pump suggestion: Air pressure and capacity: 0.027kPa, 27L/min
3. Remarkable Cutting Ability
Cutting 8mm bass plywood ,120mm/min ,one pass.
Cutting 5mm bass plywood, 50mm/min, one pass.
Cutting 5mm MDF by 2 passes, 150mm/min , 2 passes.
4.With the Laser Protective Cover
Comes with a removable protective cover. Whether engraving or cutting, use this shield to filter blue light and work without laser glasses, convenient and fast. It's also easy to remove if you don't need it.
5. Widely Compatible Design
LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.
(If you are not sure if it is compatible, please send us a picture of your machines contro board, we will provide you with a connection diagram.)
Powerful Cutting Ability
Maximum material thickness that can be cut
With Air Assist VS No Air Assist
Using air assist helps to cool the material and prevent heat damage, and also helps to remove any debris and fumes generated during the laser cutting process, resulting in a clean cut surface.
Dual-LDs with Beam Compressed Technology
One laser module has two built-in laser diodes.The optical power of each diode is 5W.
With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.
Interface Diameter Size
Air nozzle outer diameter: 6mm; inner diameter: 3.5mm
Air tube outer diameter: 8 mm;inner diameter: 6 mm
Air pump suggestion: Air pressure and capacity: 0.027kPa, 27L/min
Eye Protective Cover Design
With a laser protective cover, it can effectively filter blue light when engraving or cutting with laser head.
Widely Compatible Design
LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.
(If you are not sure if it is compatible, please send us a picture of your machines contro board, we will provide you with a connection diagram.)
Provide Spare Protection Window Piece
Debris and fumes from the laser cutting process are blown onto the lens, providing a spare lens for better cleaning and replacement.
OTHER LASER MODULE:
Thicker beam and shorter effective energy range
Lower energy density beam
LASER TREE LASER MODULE:
Thinner beam and a longer effective energy range
Higher energy density beam, stronger cutting ability
Stable Optical Power Output
For Cutting Work
The ideal position of the focal point is in the middle of the material, the cutting focal point of LT-80W-AA is 45mm, the length of the air nozzle is 39mm, so the focal point position is 6mm below the air nozzle. For example, if you want to cut 8mm plywood, the distance from the air nozzle to the surface of the material should be 6mm-8mm/2=2mm.
For Engraving Work
The focal point is at the surface of the material.
Product Size
Lens Maintenance
When the laser module is not used for a long time, please ensure that the lens is not polluted by dust.
When you replace the air nozzle, please ensure that your operation will not pollut the lens. Finger prints or dust on the lens will weaken the output power of the laser module, or even damage the lens.
When you find the cutting ability decreases, the lens might be not clean. Please use a clean alcohol swab to clean it according to the following figure.
FAQ:
1.Is the laser head compatible with the machine?
Please check whether the laser module is compatible with your engraving
A. Check the voltage parameter of your engraving machine.(12V or 24V. Then please select the module corresponding to the voltage parameter)
B. Check the pin definition of the main board on your engraving machine.(XH-2.54 3PIN connector -PWM, GND, VCC +12V)
A"&"B"are both compatible.
Connect the laser module to the main board of your engraving machine directly.
Control board pin definition is not matched.
Situation
1>: The definition of connector on the engraving machine main board is not with the pin definition on the main board.
Please rearrange the wire
Brand Name : Laser Tree
Model Number : LT-80W-AA
Origin : Mainland China
Certification : CE
Hign-concerned Chemical : None
Compatible Machines : Ort**/Atomst***/Sculpf**/Zbai**/Two t*** etc
LASER TREE 450nm 80W High Power Laser Head with Air Assist, Metal Nozzle, TTL / PWM Cutting Engraving Laser Module
LT-80W-AA-PRO Features
1.LT-80W-AA-Pro
It has an upgraded nozzle compared to the previous LT-80W-AA. The difference of this nozzle is that it has an advanced hydrodynamic design that makes better use of air pressure. When using the same air compressor, the upgraded version has a faster jet airflow.
2.With the Air Asssit Nozzle
The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.
Air pump suggestion: Air pressure and capacity: 0.027kPa, 27L/min
3. Remarkable Cutting Ability
Cutting 8mm bass plywood ,120mm/min ,one pass.
Cutting 5mm bass plywood, 50mm/min, one pass.
Cutting 5mm MDF by 2 passes, 150mm/min , 2 passes.
4.With the Laser Protective Cover
Comes with a removable protective cover. Whether engraving or cutting, use this shield to filter blue light and work without laser glasses, convenient and fast. It's also easy to remove if you don't need it.
5. Widely Compatible Design
LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.
(If you are not sure if it is compatible, please send us a picture of your machines contro board, we will provide you with a connection diagram.)
Powerful Cutting Ability
Maximum material thickness that can be cut
With Air Assist VS No Air Assist
Using air assist helps to cool the material and prevent heat damage, and also helps to remove any debris and fumes generated during the laser cutting process, resulting in a clean cut surface.
Dual-LDs with Beam Compressed Technology
One laser module has two built-in laser diodes.The optical power of each diode is 5W.
With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.
Interface Diameter Size
Air nozzle outer diameter: 6mm; inner diameter: 3.5mm
Air tube outer diameter: 8 mm;inner diameter: 6 mm
Air pump suggestion: Air pressure and capacity: 0.027kPa, 27L/min
Eye Protective Cover Design
With a laser protective cover, it can effectively filter blue light when engraving or cutting with laser head.
Widely Compatible Design
LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.
(If you are not sure if it is compatible, please send us a picture of your machines contro board, we will provide you with a connection diagram.)
Provide Spare Protection Window Piece
Debris and fumes from the laser cutting process are blown onto the lens, providing a spare lens for better cleaning and replacement.
OTHER LASER MODULE:
Thicker beam and shorter effective energy range
Lower energy density beam
LASER TREE LASER MODULE:
Thinner beam and a longer effective energy range
Higher energy density beam, stronger cutting ability
Stable Optical Power Output
For Cutting Work
The ideal position of the focal point is in the middle of the material, the cutting focal point of LT-80W-AA is 45mm, the length of the air nozzle is 39mm, so the focal point position is 6mm below the air nozzle. For example, if you want to cut 8mm plywood, the distance from the air nozzle to the surface of the material should be 6mm-8mm/2=2mm.
For Engraving Work
The focal point is at the surface of the material.
Product Size
Lens Maintenance
When the laser module is not used for a long time, please ensure that the lens is not polluted by dust.
When you replace the air nozzle, please ensure that your operation will not pollut the lens. Finger prints or dust on the lens will weaken the output power of the laser module, or even damage the lens.
When you find the cutting ability decreases, the lens might be not clean. Please use a clean alcohol swab to clean it according to the following figure.
FAQ:
1.Is the laser head compatible with the machine?
Please check whether the laser module is compatible with your engraving
A. Check the voltage parameter of your engraving machine.(12V or 24V. Then please select the module corresponding to the voltage parameter)
B. Check the pin definition of the main board on your engraving machine.(XH-2.54 3PIN connector -PWM, GND, VCC +12V)
A"&"B"are both compatible.
Connect the laser module to the main board of your engraving machine directly.
Control board pin definition is not matched.
Situation
1>: The definition of connector on the engraving machine main board is not with the pin definition on the main board.
Please rearrange the wire
