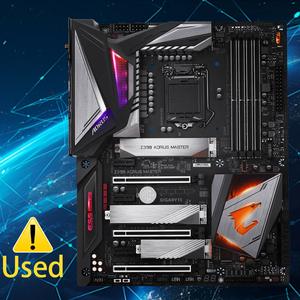

Gigabyte Z390 AORUS MASTER (Intel LGA1151/Z390/ATX/3xM.2 Thermal Guard/Onboard AC Wi-Fi/ESS Sabre DAC/Gaming Motherboard)

SELAMAT DATANG DI TOKO KAMI

Brand Name : Gigabyte
Special Function : none
Origin : Mainland China
Application : Desktop
Chipset : Intel Z390
Socket Type : LGA 1151
Chipset Manufacturer : Intel
Package : No
With CPU : No
Maximum Ram Capacity : 128 GB
Support Memory Type : DDR4
Usage Scenario : Enthusiast & Overclocking,Gaming,Audio & Video,Office
Storage Interface Type : SATA,M.2(SATA)
PCI - E standards : PCI - E 3.0
Back I/O Ports : 1x RJ45,HDMI 1.4
Number of PCI : 3
Onboard LAN : 1x RJ45
Processor compatibility : 8th Intel Core i5,9th Intel Core i3,9th Intel Core i5,8th Intel Core i7,9th Intel Core i7,8th Intel Core i9,8th Intel Core i3
RAID Supported : no


Supports 9th and 8th Gen Intel Core Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

Intel Optane Memory Ready

12 Phases IR Digital VRM Solution with PowIRstage

Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe

Onboard Intel CNVi 802.11ac 2x2 Wave 2 Wi-Fi

125dB SNR AMP-UP Audio with ALC1220 & High-End ESS SABRE 9118 DAC with WIMA audio capacitors

USB TurboCharger for Mobile Device Fast Charge Support

Intel Gigabit LAN with cFosSpeed

RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

Front USB 3.1 Gen 2 Type-C Header

Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guard

USB DAC-UP 2 with Adjustable Voltage

CEC 2019 Ready, Save Power With a Simple Click

CPU

Support for 9th and 8th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package

L3 cache varies with CPU

(Please refer to "CPU Support List" for more information.)

Chipset

Intel Z390 Express Chipset

Memory

4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**

** Please note that the support for system total memory size depends on the CPU installed.

Dual channel memory architecture

Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer to "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB

Actual support may vary by CPU

Audio

Realtek ALC1220-VB codec

* The front panel line out jack supports DSD audio.

ESS SABRE 9118 DAC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Intel GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module

Intel CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5

Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)

* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

* The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector.

3 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

1 x M.2 Socket 1 connector for an Intel CNVi wireless module (CNVI)

Multi-Graphics Technology

Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies

Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies

Storage Interface

Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX4, M.2 and SATA connectors.

Intel Optane Memory Ready

USB

Chipset:

1 x USB Type-C port with USB 3.1 Gen 2 support, available through the internal USB header

1 x USB Type-C port on the back
