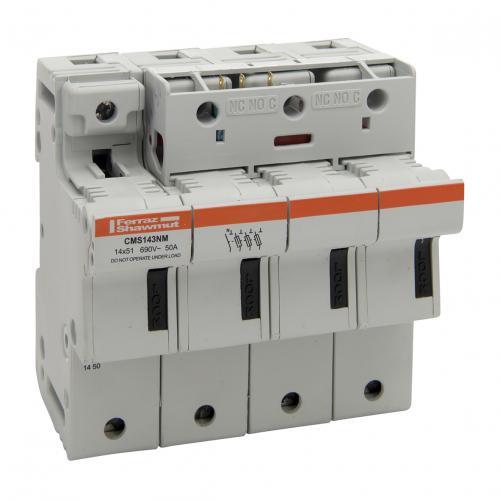

MODULAR FUSE HOLDER MERSEN -FERRAZ SHAWMUT- 3P+N, 14x51,E331043

HARGA TERTERA ADALAH HARGA 1 PCS modular fuse holder, IEC, 3P+N, 14x51, DIN rail mounting, IP20, with MS Rated voltage AC IEC : 690 V Rated voltage DC IEC : 690 V Ampere Rating : 50 A ROHS Compliant : Yes Short Circuit Current Rating (SCCR) : 100 kA Fuse Size : 14x51 Design Details : CMS14 triple pole + neutral conductor Indication System : Yes Indication System Type : Microswitch Number of Poles : 3-Pole+N Torque Rating : 30.98 lb-in Rated Impulse Withstand Voltage : 8 Rated Insulation Voltage : 690 V Conventional Free Air thermal Current With Fuse-Links Ith : 50 A Installation Mounting : DIN rail acc. EN 60715 Comments : Wiring tool : PZ2 or flat 5.5x1mm screw drivers recommended (max. diameter 6mm) Product Width : 4.17 in Product Length : 3.01 in Product Height : 4.36 in APPROVALS amp; STANDARDS - IEC 60269-2 and IEC 60947-3 Compliance - RoHS Compliant - Plastic material: NF 16101 amp; 16102 Requirement 2 Compliant
