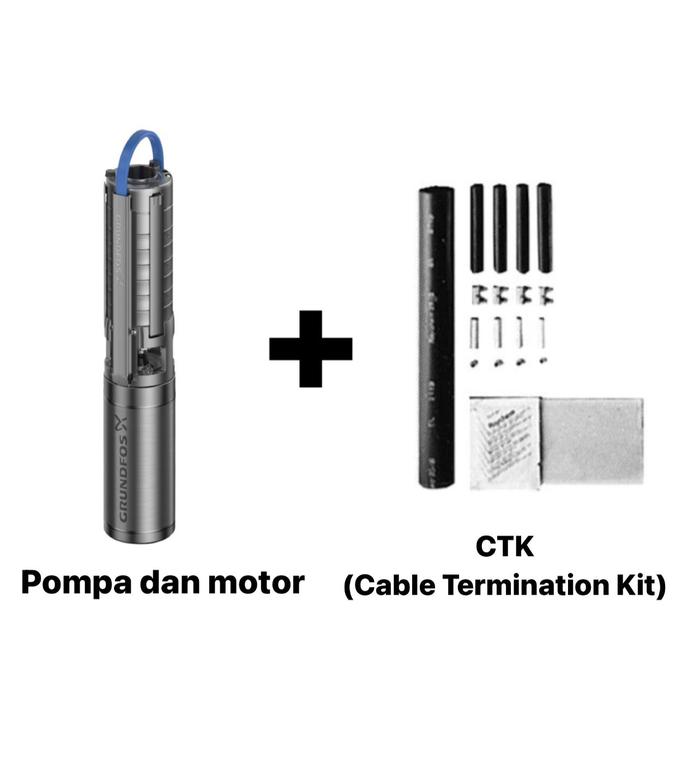

SP 3A-22 Submersible PumpMesin Pompa Air GRUNDFOS 3 PHASE 1.5kw - POMPA+MOTOR

_____MOHON TANYAKAN KEBERADAAN STOCK SEBELUM ORDER_____ KARENA STOCK SETIAP HARI BERUBAH TERIMA KASIH CTK bakar PN : 116251 Specifications Product name SP 3A-22 Product No 10052122 EAN number 5700390305666 Technical Pump speed on which pump data are based 2900 rpm Rated flow 3 m³/h Rated head 98 m Stages 22 Impeller reduc. NONE Shaft seal for motor LIPSEAL Approvals on nameplate CE,EAC Curve tolerance ISO9906:2012 3B Model A Valve NO Motor version T40 Specification for shaft end SPLINE Materials Pump Stainless steel Pump EN 1.4301 Pump AISI 304 Impeller Stainless steel Impeller EN 1.4301 Impeller AISI 304 Motor Stainless steel Motor DIN W.-Nr. 1.4301 Motor AISI 304 Installation Pump outlet Rp1 1/4 Motor diameter 4 inch Liquid Pumped liquid Water Maximum liquid temperature 40 °C Max liquid t at 0.15 m/sec 40 °C Selected liquid temperature 20 °C Density 998.2 kg/m³ Electrical data Motor type MS402 Motor type 1-phase CSCR Applic. motor GRUNDFOS Rated power - P2 1.5 kW Power (P2) required by pump 1.5 kW Mains frequency 50 Hz Rated voltage 1 x 380 V Rated current 10.2 A Starting current 460 % Cos phi - power factor 0.98 Rated speed 2860 rpm Start. method direct-on-line Enclosure class (IEC 34-5) IP68 Insulation class (IEC 85) B Motor protec NONE Thermal protec external Built-in temp. transmitter no Motor No 79213106 Others Minimum efficiency index, MEI ≥ 0.70 ErP status EuP Standalone/Prod. Net weight 17.5 kg Gross weight 19.3 kg Shipping volume 21.7 m³
