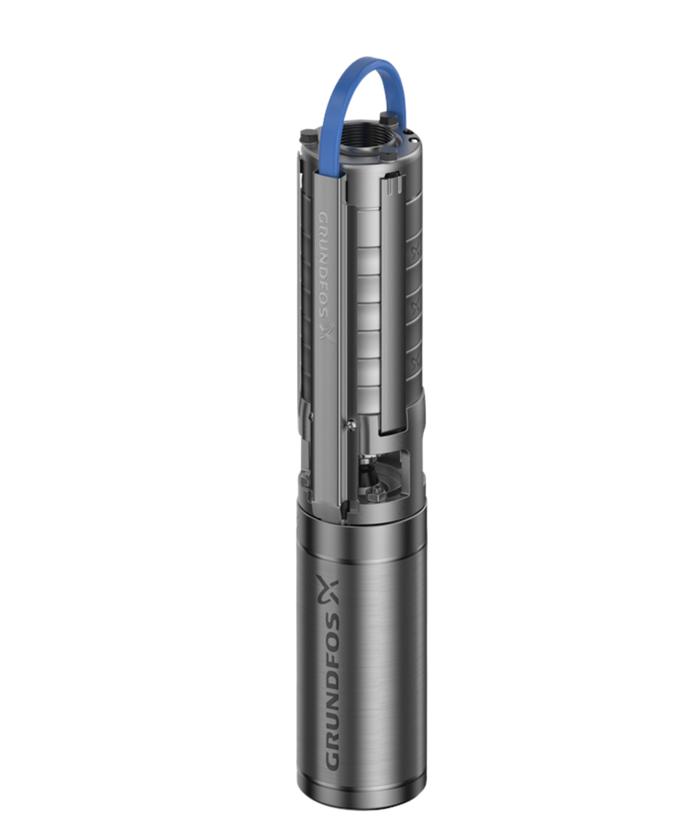

SP 5A-17 Mesin Pompa Air GRUNDFOS 1 Phase 1,5 kw

___ MOHON TANYAKAN DAHULU KETERSEDIAAN STOCK___ KARENA STOCK SETIAP HARI BERUBAH TERIMA KASIH Specifications Product name SP 5A-17 Product No 05001K17 EAN number 5708601051494 Technical Pump speed on which pump data are based 2900 rpm Rated flow 5 m³/h Rated head 70 m Stages 17 Impeller reduc. NONE Shaft seal for motor LIPSEAL Approvals on nameplate CE,EAC Curve tolerance ISO9906:2012 3B Model A Valve YES Motor version T40 Specification for shaft end SPLINE Materials Pump Stainless steel Pump EN 1.4301 Pump AISI 304 Impeller Stainless steel Impeller EN 1.4301 Impeller AISI 304 Motor Stainless steel Motor DIN W.-Nr. 1.4301 Motor AISI 304 Installation Pump outlet Rp1 1/2 Motor diameter 4 inch Liquid Pumped liquid Water Maximum liquid temperature 40 °C Max liquid t at 0.15 m/sec 40 °C Selected liquid temperature 20 °C Density 998.2 kg/m³ Electrical data Motor type MS402 Applic. motor GRUNDFOS Rated power - P2 1.5 kW Power (P2) required by pump 1.5 kW Mains frequency 50 Hz Rated voltage 3 x 380-400-415 V Rated current 4.10-4.20-4.40 A Starting current 490-500-500 % Cos phi - power factor 0.80-0.75-0.70 Rated speed 2850-2860-2870 rpm Start. method direct-on-line Enclosure class (IEC 34-5) IP68 Insulation class (IEC 85) B Motor protec NONE Thermal protec external Built-in temp. transmitter no Motor No 79192006 Others Minimum efficiency index, MEI ≥ 0.50 ErP status EuP Standalone/Prod. Net weight 16.5 kg Gross weight 17.9 kg Shipping volume 16.3 m³ Danish VVS No. 388315170 Swedish RSK No. 5852972 Finnish LVI No. 4762676 Norwegian NRF no. 9040875
