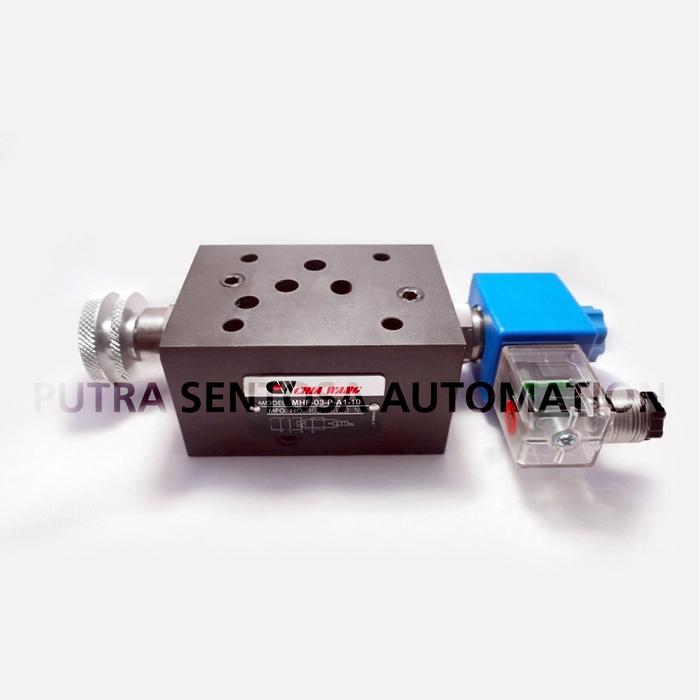

MODULAR SOLENOID FLOW CONTROL VALVE SIZE 03 CHIA WANG MHF-03-P - A1-10 110VAC

01/01/2025
✓ MOHON CEK KETERSEDIAAN STOCK SEBELUM TRANSAKSI
✓ DENGAN BEBAN BIAYA LAYANAN DAN PROMO TOKOPEDIA
✓ HARGA DAN STOCK DAPAT BERUBAH SEWAKTU WAKTU
✓ TRANSAKSI VIA PERUSAHAAN HARGA LEBIH RINGAN
✓ WHATSAPP 082195957500

MODULAR SOLENOID FLOW CONTROL VALVE SIZE 03 CHIA WANG MHF-03-P-A2-10
===================================================================
ORDERING EXAMPLE
* MHF-03-P-A1-10 110VAC
* MHF-03-P-A2-10 220VAC
* MHF-03-P-D1-10 12VDC
* MHF-03-P-D2-10 24VDC
===================================================================
SPECIFICATION
Subplate Mounting Size : 03 3/8" 10mm ISO CETOP5 DIN NG 10 NFPA D05
Control Port : P
Type of Coil :
~ A1 (AC 110V)
~ A2 (AC 220V)
~ D1 (DC 12V)
~ D2 (DC 24V)
Design Code : 10 (Pressure temperature compensation is not provided)
===================================================================
Maximum Pressure : 210 bar
Adjustment Flow : 0 ~ 35 LPM
Maximum Flow : 40 LPM
===================================================================
Fluid Type : ISOVG32 ISOVG46 ISOVG68
Viscosity 10 ~ 400cSt
Operating Temperature : -15 ~ 70C
Contamination Level : ISO4406 . 21/19/16 NAS1638,10
Surface Teatment : Zinc Phosphate Compound
===================================================================
Manufacture CHIA WANG OIL HYDRAULICS Taiwan
