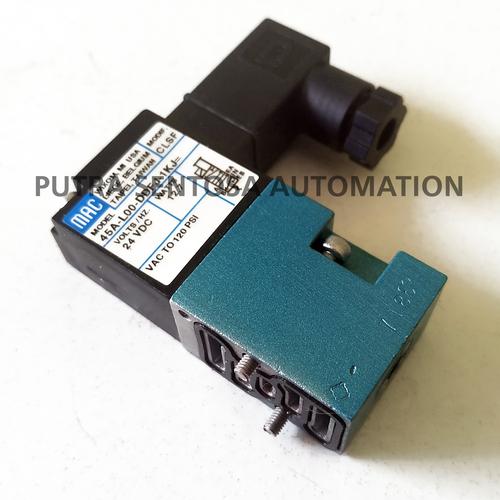

SMALL 4-WAY LESS BASE SOLENOID VALVE MAC 45A-L00-DDFJ-1KJ - 24VDC 5.4W, LED SOCKET
Rp1.900.000
Pilih voltage: 24VDC 5.4W
Pilih socket: LED SOCKET
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: MAC VALVES
01/07/2024
✓ DENGAN BEBAN BIAYA LAYANAN DAN PROMO TOKOPEDIA
✓ HARGA DAN STOCK DAPAT BERUBAH SEWAKTU WAKTU
✓ TRANSAKSI VIA PERUSAHAAN HARGA LEBIH RINGAN
✓ WHATSAPP 082195957500
SMALL 4-WAY LESS BASE SOLENOID VALVE MAC VALVES 45A-L00-DDFJ-1KJ
=======================================================
ORDERING EXAMPLE
* 45A-L00-DFBJ-1KJ (24VDC 2.8W ; NO SOCKET)
* 45A-L00-DDAJ-1KJ (24VDC 5.4W ; NO SOCKET)
* 45A-L00-DDFJ-1KJ (24VDC 12.7W CLASS F ; NO SOCKET)
* 45A-L00-DACJ-1KJ (24/50 24/60 ; NO SOCKET)
* 45A-L00-DAAJ-1KJ (110/50 110/60 ; NO SOCKET)
* 45A-L00-DABJ-1KJ (220/50 240/60 ; NO SOCKET)
=======================================================
FEATURES
* Glass-like Spool Low Friction Anti Sticking Valve
* Oval Armature
* High Flow High Cycle Quick Response Time
* Maximum Shifting Force
* Superior Durability
* Reliable Performance
* Long Service Life up to 100million cycles (approximately 10years of use)
=======================================================
TECHNICAL DATA
Fluid : Compressed air, vacuum, inert gases
Pressure range : Vacuum to 8 bar
Lubrication : Not required, if used select a medium aniline point lubricant (between 80°C and 100°C)
Filtration : 40microns
Temperature range : -18°C to 50°C
Flow : 110LPM (1.8W) ; 130LPM (5.4W)
Coil : General purpose class A, continuous duty, encapsulated
Voltage range : -15% to +10% of nominal voltage
Power : = 1.8 to 12.7W
~ Inrush : 10.9VA
~ Holding : 7.7VA
Response times :
~ 24 VDC 5.4 W Energize : 6ms ; De-energize : 2ms
~ 110/50Hz 6VA Energize : 3-8ms ; De-energize : 2-7ms
~ 220/50Hz 6VA Energize : 3-8ms ; De-energize : 2-7ms
Valve Cycle Speed : MORE THAN 7500 CYCLES PER MINUTE
=======================================================
Manufacture MAC VALVES Michigan USA
