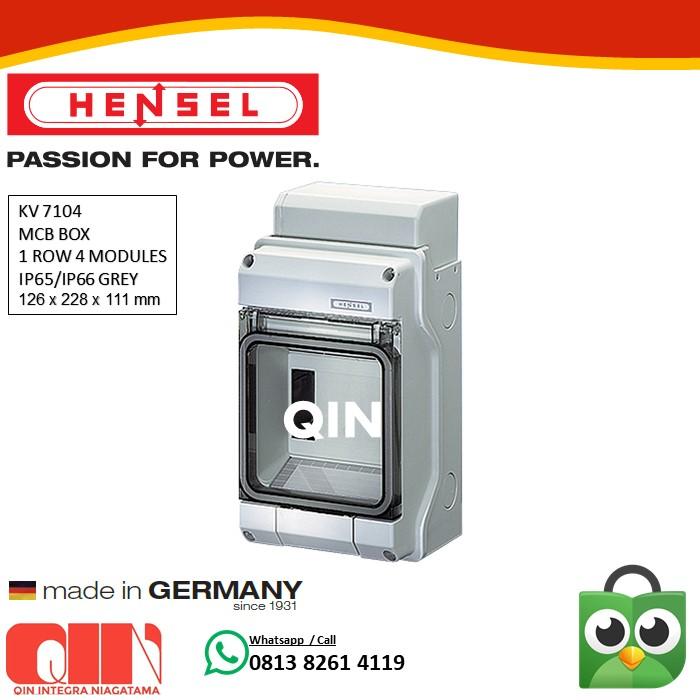

MCB BOX HENSEL POLYSTYRENE 1 ROW 4 MODULES IP65 KV 7104 GREY
Rp880.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: HENSEL
KV 7104
4.5 modules: 1 x 4.5 x 18 mm
1-row
knockouts: top and bottom walls 2x M20 and 1x M25/32 each
per PE/N number x cross section 2 x 25 mm, 4 x 4 mm Cu, FIXCONNECT terminal technology, for terminal technology refer to technical data
for the installation of DIN rail equipment up to 63 A, top hat profile 35 mm
with transparent lid, sealable
locking device for hinged lid and sealing facility see accessories
with cable entry cover
protective cover can be cut out
degree of protection: IP 65
colour: grey, RAL 7035
rated insulation voltage Ui = 400 V a.c.
power dissipation capability Pde = 12 watts at 30 K according to EN 60670-24
protection class II
material PS (Polystyrene)
width 126 mm
height 228 mm
depth 111 mm
weight 0,614 kg
4.5 modules: 1 x 4.5 x 18 mm
1-row
knockouts: top and bottom walls 2x M20 and 1x M25/32 each
per PE/N number x cross section 2 x 25 mm, 4 x 4 mm Cu, FIXCONNECT terminal technology, for terminal technology refer to technical data
for the installation of DIN rail equipment up to 63 A, top hat profile 35 mm
with transparent lid, sealable
locking device for hinged lid and sealing facility see accessories
with cable entry cover
protective cover can be cut out
degree of protection: IP 65
colour: grey, RAL 7035
rated insulation voltage Ui = 400 V a.c.
power dissipation capability Pde = 12 watts at 30 K according to EN 60670-24
protection class II
material PS (Polystyrene)
width 126 mm
height 228 mm
depth 111 mm
weight 0,614 kg
