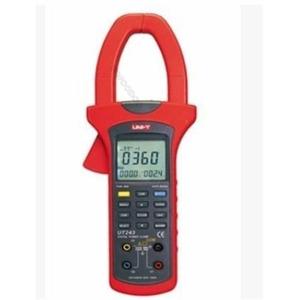

UNI-T UT243 Three Phase True RMS Analysis Power Clamp data Logger

UNI-T UT243 Three Phase True RMS Harmonic Analysis Power Clamp Meter USB Data Logger

Specifications Range Best Accuracy
AC Voltage 150V/300V/600V ±(1.2%+5)
AC Current 50A/250A/1000A ±(2%+5)
Active Power(W) 0.01kW-600kW ±(3%+5)
Apparent Power(VA) 0.01kVA-600kVA ±(3%+5)
Reactive Power(VAr) 0.01kVAr-600kVAr ±(4%+5)
Power Factor 0.3~1(Capacitive or Inductive ) ±(0.02+2)
Phase Angle 0°C~360°C ±1°
Frequency 50Hz-60Hz
Active Energy(Wh) 1~9999 kWh ±(3%+5)
Special Features
Auto Ranging √
Single-phase 2-wire √
3-phase 3-wire √
3-phase 4-wire √
Phase Rotation Test √
True RMS AC Voltage or Current √
Harmonic Analysis 1-20
Data Logging 999 √
Data Hold √
Max/Min Mode √
Setup √
USB √
LCD Backlight √
Full Icon Display √
Auto Power Off √
Low Battery Display √
Input Impedance for DCV
Around 5MW √
Max. Display 9999 √
Accessories:
Test Lead, English Manual, Alligator Clips, USB Interface Cable, Software, Tool Box
