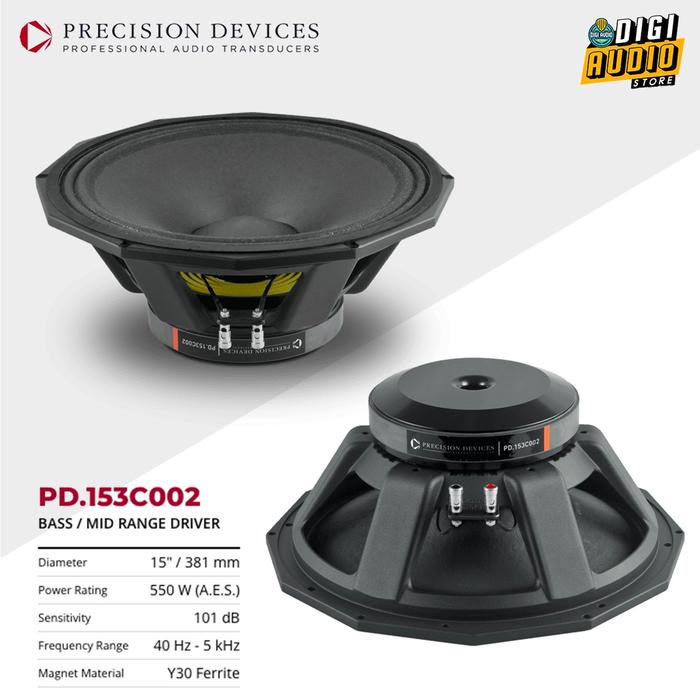

Precision Device PD 153C002 Speaker Komponen Pasif 15 inch 450 Watt -

PRECISION DEVICES PD.153C002 ( 1 PCS ) ORDER MAXIMUM 2 PCS PER TRANSAKSI UNTUK MENGHINDARI BERAT OVERLOAD.... Vented cast aluminium chassis for improved thermal control of voice coil Aluminium demodulating ring Copper shorting ring M-roll cone surround profile Ribbed cone profile SPECIFICATION: Nominal Diameter 15 #34; / 381 mm Voice Coil Diameter 3.0 #34; / 76.2 mm Available Impedances 4 Ω/ 8 Ω/ 16 Ω Power Rating 1 2 * 550 W (A.E.S.) Peak Power (6dB Crest Factor)* 2200 W (A.E.S.) Sensitivity (1W – 1m)* 101 dB Frequency Range 40 Hz - 5 kHz Recommended Enclosure Volume 40 - 80 Litres Resonance 38 Hz Voice Coil Winding Depth 0.73 #34; / 18.50 mm Magnet Gap Depth 10.00 mm / 0.39 #34; Flux Density 1.20 Tesla Magnet Material Y30 Ferrite Magnet Weight Voice Coil Material Copper Clad Aluminium Former Material Kapton Dust Dome Material Paper Suspension Material Fabric Cone Material Paper Surround Material Fabric DIMENSION amp;MOUNTING: Overall Diameter 15 #34; / 381 mm Widths Across Flats 395 mm Flange Height 11.00 mm Depth (Excl. Flange) 152.70 mm Magnet Diameter 200 mm Chassis Shoulder Diameter 354.20 mm Outer Bolt Circle x6 M8 on 394 mm PCD Inner Bolt Circle N/A MADE IN CHINA #34;FREE PACKING KAYU #34; SKU : 3131/1536212638402822144/55
