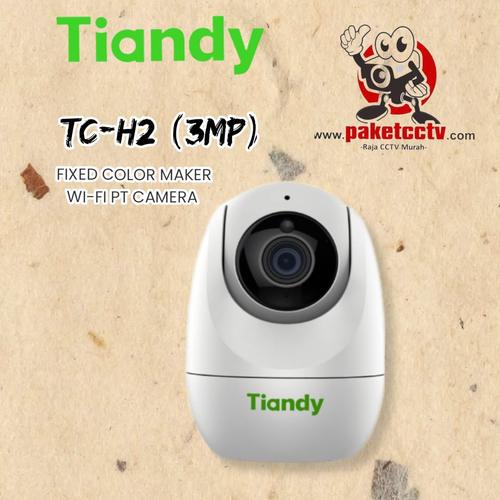

IP CAMERA Tiandy TC - H2 3MP Two Way Audio Wi-Fi EW Pan Tilt Smart

Spesifikasi Singkat
Model Tiandy TC-H332N Spec:I2W/WIFI/4mm/V4.0 Technical Specifications
Camera
Image Sensor 1/2.8″ CMOS
Signal System PAL/NTSC
Min. Lighting Color:0.02Lux@ (F2.0, AGC ON), B/W:0Lux with IR
Shutter Time 1/1s～1/100000s
Day and night IR Cut Filter with Auto Switch
Digital Zoom 2X
Lens
Focal Length 4mm
Field of view "Horizontal Field of View: 82.4° (w)~1.54° (t),
Vertical Field of View: 45.4° (w)~0.87° (t),
Diagonal Field of View: 96.2°(w)~1.77(t)"
Aperture F2.0
Close Focus Distance 2m
Pan&Tilt
Scroll Range 350°
Scroll Speed 35°/s
Slope Range 0°~115°(Default 90°)
Tilt Speed 19°/s
3D Location N/A
Preset 256
Shutdown Memory Available
Compression Standard
Video Compression S 265/H.265/H.264 (High profile、Main profile、Baseline)
Video Bitrate 32k~4M(Main Stream),32k~1M(Sub Stream)
Audio Compression G.711A/G.711U
Audio Bitrate 8kHz/16kHz
Views
Max. Resolution 3MP(2304×1296)
Privacy Mask Available, 4 Fields
Flip Available
Features
Alarm Trigger Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict
Early Warning (EW) Available
Auto-Tracking Current,Human Detection
network
User/Host Up to 8 users, 4 user levels.
Protocols HTTP/TCP/UDP/DHCP/RTMP/RTSP/FTP/NTP/DNS
System Compatibility ONVIF(PROFILE S/T),SDK,CGI,RTSP
ANR Available
Remote Connection ≤2
WI-FI
Wi-fi Standard IEEE802.11b/802.11g/802.11n
Frequency range 2.4GHz ~ 2.4835GHz
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Speaker Available
Reset Button Available
Onboard Storage Internal MicroSD card slot, max 512 GB
General features
Power source DC12V±25%
Power consumption 37W (IR OFF), 62W (IR ON)
Materiel Plastic
Dimensions Φ95x160mm (Φ80x113mm
Net weight 0.38kg (0.22kg)
