Atur jumlah dan catatan
Stok: Habis
Subtotal
-

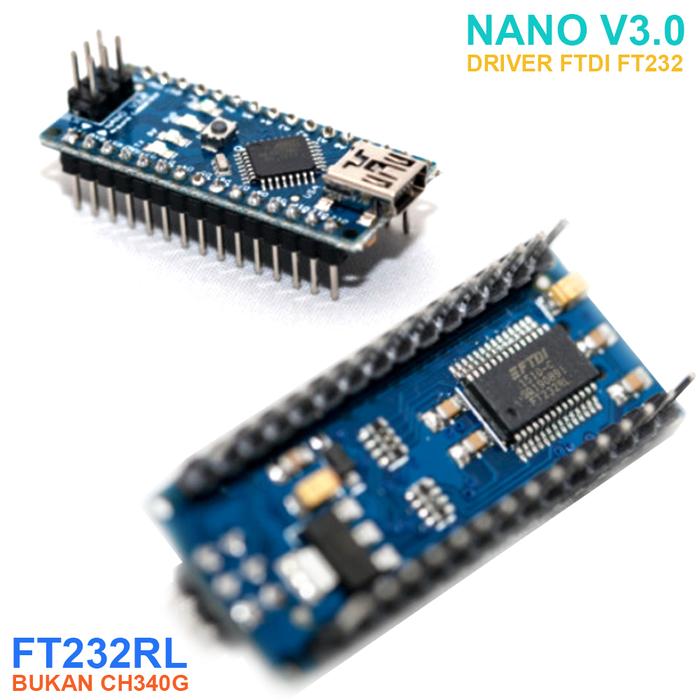

Arduino Nano V3.0 FTDI Driver FT232RL Bukan CH340G Nano V3 FT232 ORI - Plus Kabel Data
Rp72.135
Pilih kelengkapan: Plus Kabel Data
Stok varian ini habis. Simpan di Wishlist untuk diingatkan ketika barang kembali tersedia.
Arduino Nano with FTDI Driver CHIP FT232RL
High Quality Arduino Nano V3 Compatible
Tidak menngunakan Driver CH340 tetapi FT232
Microcontroller : Atmega328p
Clock Speed : 16MHz
Operating Voltage : 5V
Input Voltage : 6V-12V (rekomendasi max 9V)
Max GPIO Current Rating : 40mA
USB interface : Type-B Mini USB
ICSP Header : Yes
DC Power Jack : No
Flash Memory : 32KB
SRAM Memory : 2KB
EEPROM : 1KB
D0 – D13 : Digital Input / Output Pins.
A0 – A7 : Analog Input / Output Pins(digital out).
Pin # 3, 5, 6, 9, 10, 11 : Pulse Width Modulation ( PWM ) Pins.
Pin # 0 (RX) , Pin # 1 (TX) : Serial Communication Pins.
Pin # 10, 11, 12, 13 : SPI Communication Pins.
Pin # A4, A5 : I2C Communication Pins.
Pin # 13 : Built-In LED for Testing.
D2 & D3 : External Interrupt Pins.
Driver FTDI :
Windows 2003 sampai Win10 32/64bit : https://www.usb-drivers.org/wp-content/uploads/2017/04/CDM-v2.12.36.4-WHQL-Certified.zip
Windows 10 & 11 only : https://www.usb-drivers.org/wp-content/uploads/2017/04/CDM-v2.12.36.4.U-WHQL-Certified.zip
High Quality Arduino Nano V3 Compatible
Tidak menngunakan Driver CH340 tetapi FT232
Microcontroller : Atmega328p
Clock Speed : 16MHz
Operating Voltage : 5V
Input Voltage : 6V-12V (rekomendasi max 9V)
Max GPIO Current Rating : 40mA
USB interface : Type-B Mini USB
ICSP Header : Yes
DC Power Jack : No
Flash Memory : 32KB
SRAM Memory : 2KB
EEPROM : 1KB
D0 – D13 : Digital Input / Output Pins.
A0 – A7 : Analog Input / Output Pins(digital out).
Pin # 3, 5, 6, 9, 10, 11 : Pulse Width Modulation ( PWM ) Pins.
Pin # 0 (RX) , Pin # 1 (TX) : Serial Communication Pins.
Pin # 10, 11, 12, 13 : SPI Communication Pins.
Pin # A4, A5 : I2C Communication Pins.
Pin # 13 : Built-In LED for Testing.
D2 & D3 : External Interrupt Pins.
Driver FTDI :
Windows 2003 sampai Win10 32/64bit : https://www.usb-drivers.org/wp-content/uploads/2017/04/CDM-v2.12.36.4-WHQL-Certified.zip
Windows 10 & 11 only : https://www.usb-drivers.org/wp-content/uploads/2017/04/CDM-v2.12.36.4.U-WHQL-Certified.zip
