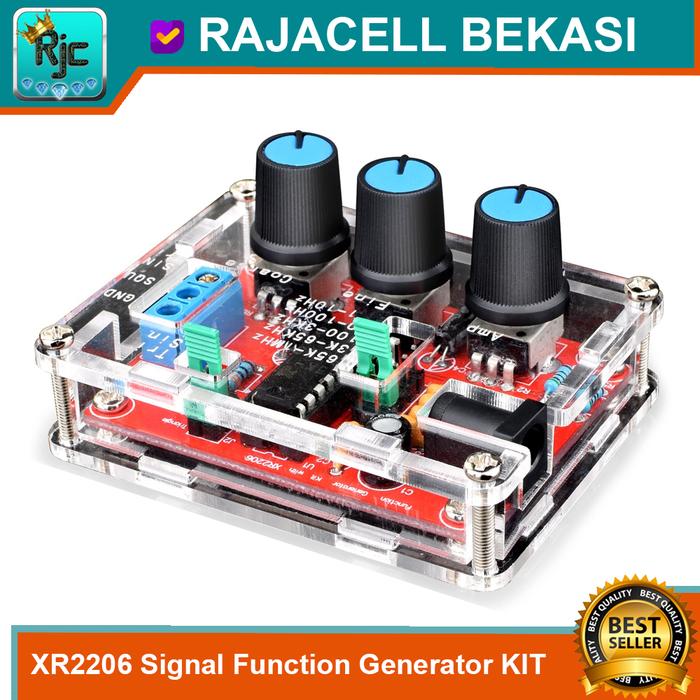

DIY 1Hz -1MHz XR2206 High Precision Function Signal Generator Kit - Kesing Saja, Belum Dirakit

Pilihan Varian : Tanpa Kesing Plus Kesing Kesing Saja Pilihan Kondisi Sudah Dirakit (tersolder) Belum Dirakit (belum disolder) High resolution, can generate sine/triangle/square wave forms. Frequency range: 1Hz-1MHz. Adjustable frequency and amplitude. Frequency adjustment features coarse tuning and fine tuning. Wide power supply range, use 9-12V external power or 9V battery(NOT Included). All are through hole components, easy for installation. Voltage Supply: 9-12V DC Input Waveforms: Square, Sine amp; Triangle Impedance: 600 Ohm + 10% Frequency: 1Hz - 1MHz SINE WAVE Amplitude: 0 - 3V at 9V DC input Distortion: Less than 1% (at 1kHz) Flatness: +0.05dB 1Hz - 100kHz SQUARE WAVE Amplitude: 8V (no load) at 9V DC input Rise Time: Less than 50ns (at 1kHz) Fall Time: Less than 30ns (at 1kHz) Symmetry: Less than 5% (at 1kHz) TRIANGLE WAVE Amplitude: 0 - 3V at 9V DC input Linearity: Less than 1% (up to 100kHz) 10mA Specifications: High resolution sine/triangle/square wave forms High Precision Adjustable frequency and amplitude hole components easy for installation Produk Serupa :
