High Quality HX711 Shielding ADC 24bit Dual Channel for Load Cell - Ungu, Pin Tersolder

New HX711 Module Operating Amplifier Untuk Sensor Timbangan / loadcell.
Compatible dengan Loadcell 1Kg hingga 50Kg
Compatible dengan Arduino, ESP8266, ESP32, STM32, Raspberry dll.

Versi baru ini di claim memiliki kualitas yg lebih baik dibanding yg model hijau.


Produk Ini Memiliki 2 Varian :

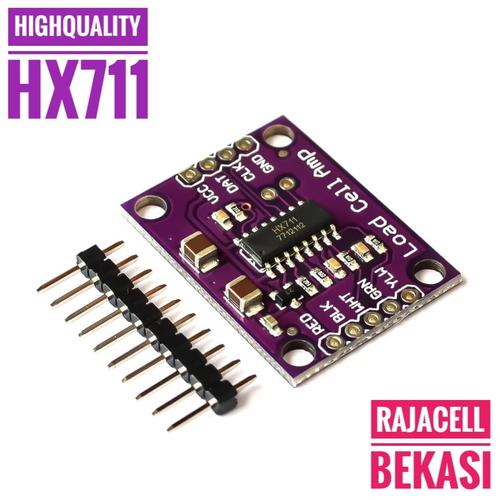

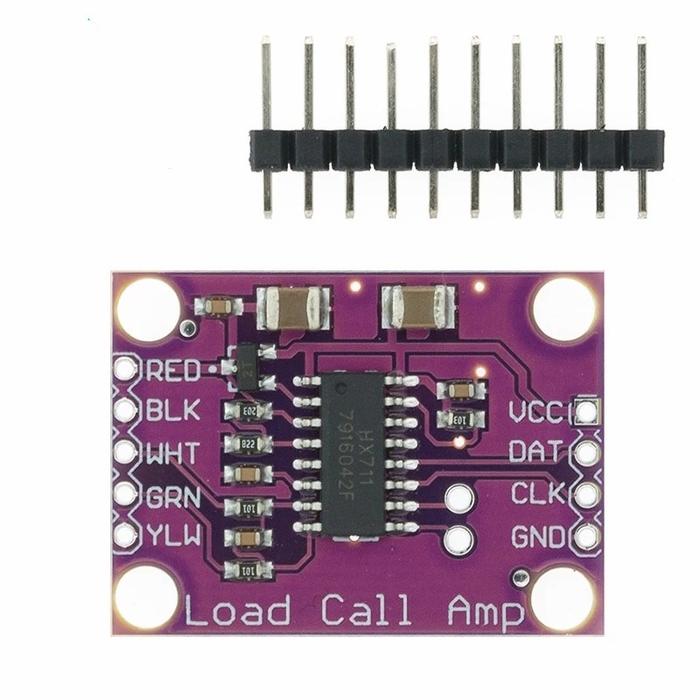

1.Board Ungu (IC Ori HX711 + Komponen pendukung kualitas bagus)
2.Board Merah (IC Ori HX711 + Metal Shield peredam EMI/Spike/EMF)

Tersedia 2 Pilihan kondisi Pin Header :
1.Pin Header Sudah disolder
2.Pin Header Belum Disolder


Feature :

-Two selectable differential inputs
-Rene-chip, low-noise programmable amplifier with selectable gain of 64 and 128
-Rene-chip voltage regulator supplies power directly to the external sensor and on-chip A/D converter
-Rene-chip clock oscillator requires no external components, if necessary, use an external crystal or clock

-Automatic power-on reset circuit
-Simple digital control and serial communication: All are controlled by input pins, the chip registers without programming

-Choose 10Hz or 80Hz output data rate
-Simultaneous rejection of 50Hz and 60Hz power interference
-Power consumption (including power supply circuit):
Typical operating current: 1.7mA
shutdown current: 1mA

-Operating voltage range: 2.6 ~ 5.5V
-Operating temperature range: -20 ~ + 85 'C
-SOP-16 16-pin package
