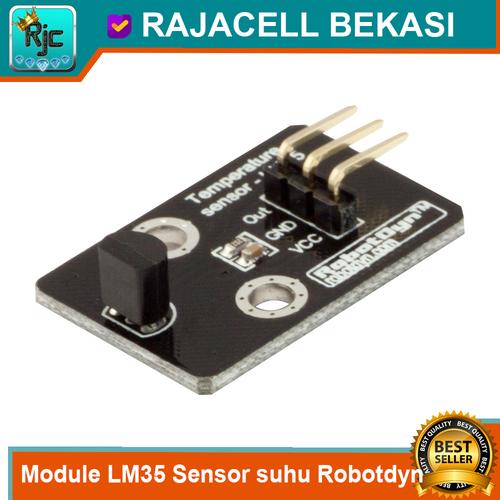

Module LM35 Robotdyn Sensor Suhu Temperature Thermal Analog Sensor

Made by Robotdyn Original - Special Quality
Sensor Suhu Output Linear Analog Voltage dengan Chip LM35 Original
Sudah berikut PCB Break out board + pin
Lebih simple dalam penggunaan dan wiring dibanding dengan LM35 satuan/tanpa breakout.

Support Arduino, ESP8266, ESP32, STM32 , Raspberry dll.

LM35 Features

Calibrated directly in o Celsius (Centigrade)
Linear + 10.0 mV/oC scale factor
0.5oC accuracy guaranteeable (at +25oC)
Rated for full −55o to +150oC range
Suitable for remote applications
Low cost due to wafer-level trimming
Operates from 4 to 30 volts
Less than 60 µA current drain
Low self-heating, 0.08oC in still air
Nonlinearity only ±1⁄4oC typical
Low impedance output, 0.1 Ω
