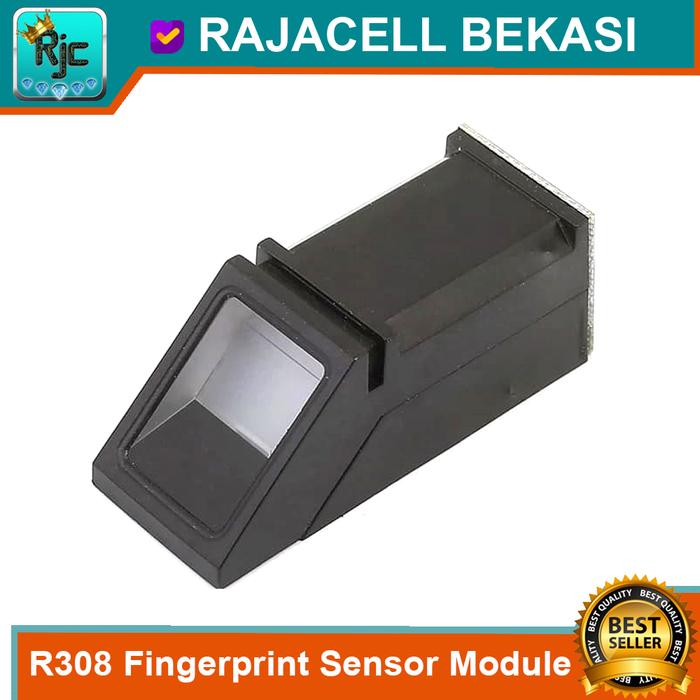

R308 Finger print Fingerprint Sensor Module Sensor Sidik Jari Arduino

*Urutan Pinout lihat gambar **Default Vcc : 5V via pin 1 **Penggunaan Vcc 3.3v bisa melalui pin 6 setelah melakukan jumper di pad J1 yg ada di depan pin 3 dan 4 (Setelah pad J1 3.3v di jumper jangan memberi Vcc 5v di pin 1 atau module bisa mengalami kerusakan) #34; Warning : Default Baudrate untuk type ini adalah 57600 bukan 9600 #34; Library Arduino : https://github.com/adafruit/Adafruit-Fingerprint-Sensor-Library Tutorial 1 : https://create.arduino.cc/projecthub/SurtrTech/fingerprint-door-lock-based-on-fpm10a-741e27 Tutorial 2 : https://randomnerdtutorials.com/fingerprint-sensor-module-with-arduino/ (jenis module pada tutorial bisa saja berbeda dengan type sensor anda, sesuaikan penyambungan kabel dengan modul anda sesuai wiring kabel module anda) ProvideFree Reference SDK Files for Arduino, Android,.Net,Windows and so on. Provide User Manual You can download the R308user manual from this website link: https://www.dropbox.com/sh/epucei8lmoz7xpp/AAAmon04b1DiSOeh1q4nAhzAa?dl=0 Library Arduino : Adafruit Fingerprint Sensor Model : R307 Type : Optical Fingerprint Module Interface : UART(RS232 TTL) Resolution : 508 DPI Voltage : DC 4.2-6V Fingerprint Capacity : 1000 Sensing array : 300000 pixel Fingerprint module size : 55.5*20.5*21 (mm) Effective collection area : 11 * 15 (mm) Scanning Speed : lt; 0.2 second Verification Speed : lt; 0.3 second Matching Method : 1:1; 1:N FRR : 0.1% FAR : 0.001% Work environment : -20C ~ +50C Work Humidity : 40-85% Anti-static capacity : 15KV Abrasive resistance intensity : 1 million times Communications baud rate (UART): (9600 N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)
