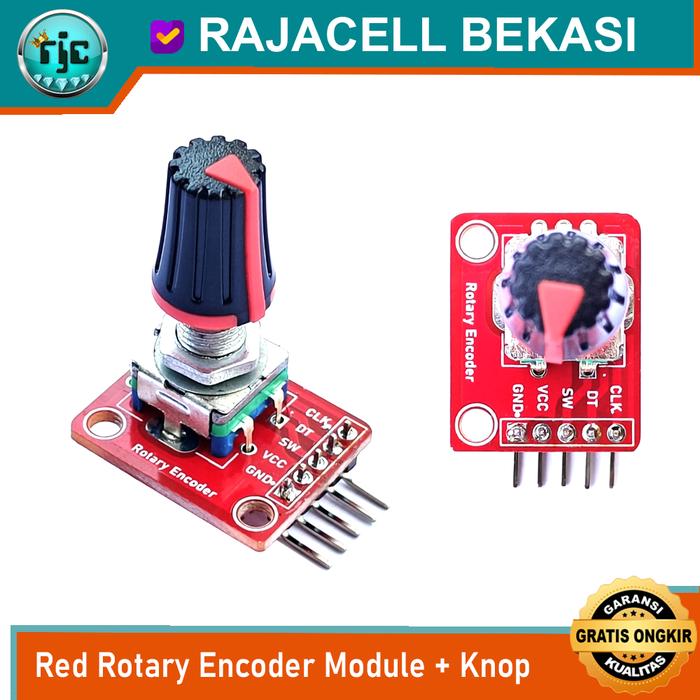

Robotdany Module Rotary Encoder Switch Rotari Enkoder Potensiometer - Merah

Robotdany Original Design Made in Indonesia - Local Pride

High Quality Rotary Encoder Module
-Dilengkapi Resistor Pull-up
-Dilengkapi Led Indikator (khusus module Hitam)
-Support sistem 5V (arduino) dan 3,3V (ESP/STM/Raspberry dll.)
-Encode 2 arah maju dan mundur, unlimited turn
-Dilengkapi tombol push button bagian tengah
-5pin header interface (VCC, GND, Out A, Out B, Switch)
-Komponen dan PCB import kualitas terbaik

Pilihan Varian :
1.Board Merah
-ukuran PCB 2 x 2.5 cm
-tinggi rotary 15mm (tanpa knop)
-sudah mendapat knop plastik

2.Board Hitam
-ukuran PCB 2 x 3,3cm
-tinggi rotary 20mm (tanpa knop)
-belum mendapat knop plastik (dijual terpisah)
-Link knop : https://www.tokopedia.com/rajacell/knop-cap-rotary-encoder-potensiometer-mixer-tutup-knob-kenop-potensio

3.Hitam+LED+Socket Molex
-ukuran PCB 2 x 3,3cm
-tinggi rotary 20mm (tanpa knop)
-dilengkapi LED power dan interface dengan soket XH-4P
-Link Kabel XH-4P = https://tokopedia.com/rajacell/4pin-pcb-socket-connector-hx-pitch-254mm-single-head-15cm-kabel-awg
-belum mendapat knop plastik (dijual terpisah)
-Link knop : https://www.tokopedia.com/rajacell/knop-cap-rotary-encoder-potensiometer-mixer-tutup-knob-kenop-potensio
