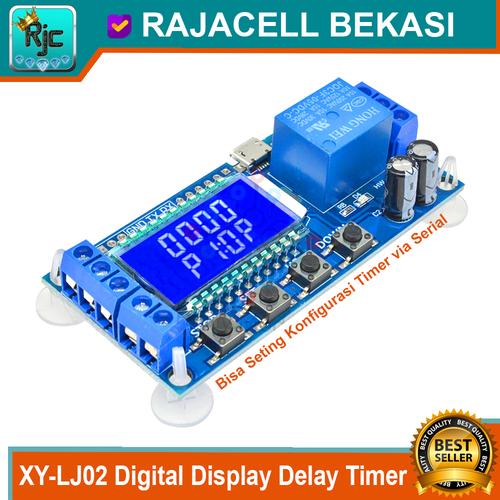

XY-LJ02 Digital LCD Display Delay Timer Module 10A bisa Serial Command

Digital LCD Display Delay Timer Module YX-LJ02 Type : YX-LJ02 Tegangan kerja : 6~30V DC via terminal Block 5V DC via port Micro USB Trigger signal source: High level(3.0V~24.0V),Low level(0.0V ~0.2V),Switch signal. Maxmum Output load: DC 30V 5A and AC 220V 5A. Static Current: 15mA Operating current: 50mA. Service life: more than 100,000 times working temperature: -40-85C Optocoupler isolation,Strong anti-interference ability, Industrial grade circuit board Ukuran : 80 x 38.5 mm Support Serial UART AT Command : Lihat Command di gambar 5 Working Mode Introduction(P1~P7) P1: After the signal is triggered, the relay conduction inOPtime then disconnects; In theOPtime, the signal is invalid. P2: After the signal is triggered, the relay conduction inOPtime then disconnects; In theOPtime, the signal triggers a new timer. P3: After the signal is triggered, the relay conduction inOPtime then disconnects; In theOPtime, signal trigger reset timer,relay disconnected and stop timing. P4: When triggered, After the relay is disconnected fromCLtime, relay conductionOPtime, after timing is complete, disconnect relay. P5: When triggered, After the relay conduction op time, the relay disconnects the CL time, and then loops the above action, gives the signal again in the loop, relays disconnect, stops the timer, and the number of cycles (LOP) can be set; P6: When triggered, After the relay conduction op time, the relay disconnects the CL time, and then loops the above action, signal is invalid in the loop, the number of cycles (LOP) can be set; P7: Signal hold function: The signal is maintained, the timing is cleared, and the relay conduction; when the signal disappears, the relay disconnects after the timing OP; during the timing, there is another signal and the timing is cleared;
