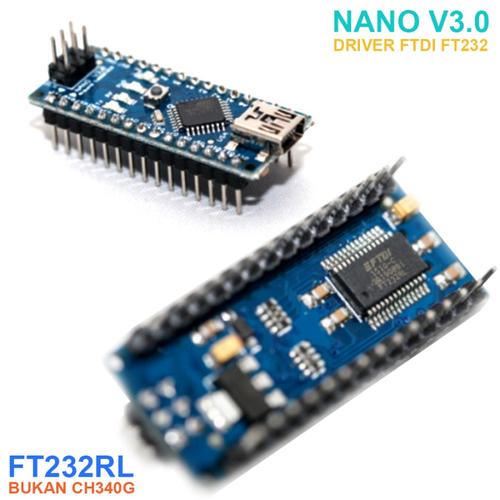

Ardiano Nano V3.0 FTDI Driver FT232RL Bukan CH340G Nano V3 FT232 ORI
Rp66.400
Pilih ukuran: 2 ukuran
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
Ardiano Nano with FTDI Driver CHIP FT232RL
High Quality Ardiano Nano V3 Compatible
Tidak menngunakan Driver CH340 tetapi FT232
Microcontroller : Atmega328p
Clock Speed : 16MHz
Operating Voltage : 5V
Input Voltage : 6V-12V (rekomendasi max 9V)
Max GPIO Current Rating : 40mA
USB interface : Type-B Mini USB
ICSP Header : Yes
DC Power Jack : No
Flash Memory : 32KB
SRAM Memory : 2KB
EEPROM : 1KB
D0 – D13 : Digital Input / Output Pins.
A0 – A7 : Analog Input / Output Pins(digital out).
Pin # 3, 5, 6, 9, 10, 11 : Pulse Width Modulation ( PWM ) Pins.
Pin # 0 (RX) , Pin # 1 (TX) : Serial Communication Pins.
Pin # 10, 11, 12, 13 : SPI Communication Pins.
Pin # A4, A5 : I2C Communication Pins.
Pin # 13 : Built-In LED for Testing.
D2 & D3 : External Interrupt Pins.
High Quality Ardiano Nano V3 Compatible
Tidak menngunakan Driver CH340 tetapi FT232
Microcontroller : Atmega328p
Clock Speed : 16MHz
Operating Voltage : 5V
Input Voltage : 6V-12V (rekomendasi max 9V)
Max GPIO Current Rating : 40mA
USB interface : Type-B Mini USB
ICSP Header : Yes
DC Power Jack : No
Flash Memory : 32KB
SRAM Memory : 2KB
EEPROM : 1KB
D0 – D13 : Digital Input / Output Pins.
A0 – A7 : Analog Input / Output Pins(digital out).
Pin # 3, 5, 6, 9, 10, 11 : Pulse Width Modulation ( PWM ) Pins.
Pin # 0 (RX) , Pin # 1 (TX) : Serial Communication Pins.
Pin # 10, 11, 12, 13 : SPI Communication Pins.
Pin # A4, A5 : I2C Communication Pins.
Pin # 13 : Built-In LED for Testing.
D2 & D3 : External Interrupt Pins.
