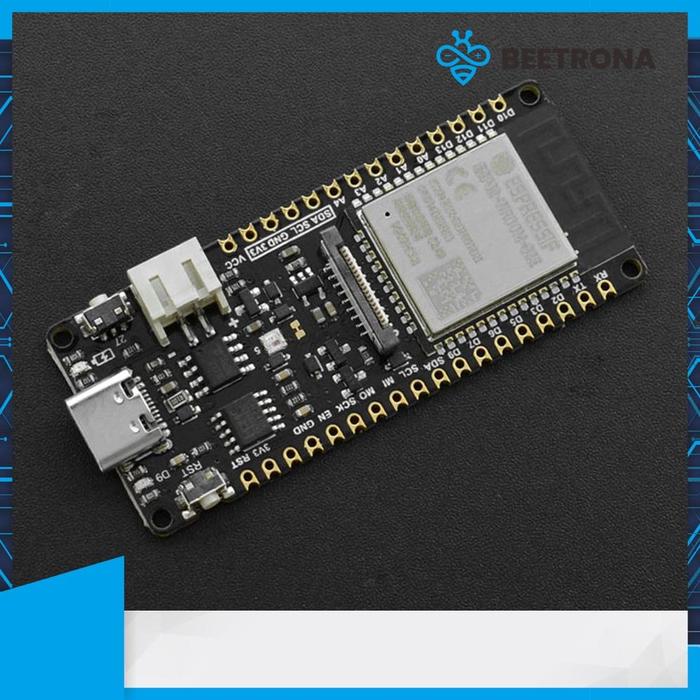

DFRobot FireBeetle 2 ESP32-E IoT Microcontroller Arduino Support Wifi and Bluetooth ESP-32

DFRobot FireBeetle 2 ESP32-E IoT Microcontroller Arduino Supports Wi-Fi and Bluetooth Compactible with Arduino IDE Specification : - Operating Voltage : 3.3V - Input Voltage : 3.3V~5.5V - Support Low-Power : 2mA - Max Discharge Current : 600mA@3.3V LDO - Support USB Charging - Processor : Tensilica LX6 dual-core processor (One for high-speed connection; one for independent application development) - Main Frequency : 240MHz - SRAM : 520KB - Flash : 32Mbit - Wi-Fi Standard : FCC/CE/TELEC/KCC - Wi-Fi Protocol : 802.11 b/g/n/d/e/i/k/r (802.11n，speed up to 150 Mbps), A-MPDU and A-MSDU Aggregation, support 0.4us guard interval) - Frequency Range : 2.4~2.5 GHz - Bluetooth Protocol : Bluetooth v4.2 BR/EDR and BLE standard compliant - Bluetooth Audio : CVSD and SBC audio - Operating Current : 80mA（Average） - Support Arduino download with one-key - On-chip Clock : 40MHz crystal, 32.768KHz crystal - Digital I/O x10（Arduino default） - Analog Input x5（Arduino default） - SPI x1（Arduino Default） - IIC x1（Arduino Default） - I2S x1（Arduino Default） - Connector : FireBeetle V2 series compatible - Operating Temperature : -40°C ~ 85°C - Module Size : 25.4×60mm - Mount Hole Size : inner diameter of 2.0mm Package Include - FireBeetle 2 Board ESP32-E x1 Untuk Spesifikasi dan Info lebih detail silahkan cek website resmi DFRobot
