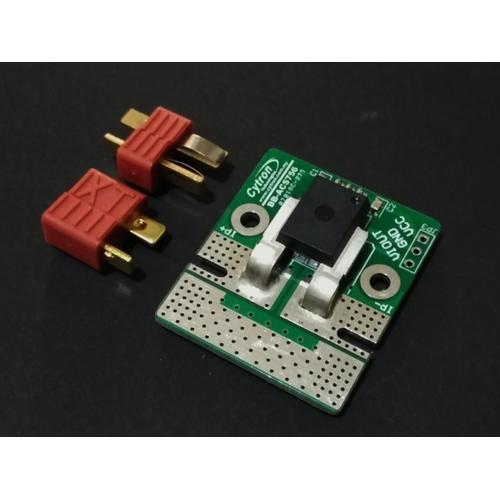

50A Current Sensor - Cytron

Features: X050 (50 Amp) version (model: ACS756KCA-050B-PFF-T) Industry-leading noise performance through proprietary amplifier and filter design techniques Total output error 0.8% at TA = 25°C Monolithic Hall IC for high reliability Ultra-low power loss: 130u Ohm internal conductor resistance 3 kV RMS minimum isolation voltage from pins 1-3 to pins 4-5 5.0 V single supply operation 3 μs output rise time in response to step input current 40 mV/A output sensitivity Output voltage proportional to AC or DC currents Factory-trimmed for accuracy Extremely stable output offset voltage Nearly zero magnetic hysteresis Tutorial : 1. http://tutorial.cytron.com.my/2012/08/08/current-measuring-using-bb-acs756-with-sk28a/ 2. http://tutorial.cytron.com.my/2014/08/24/ampmeter-using-sk28a-and-7-segment-display/
