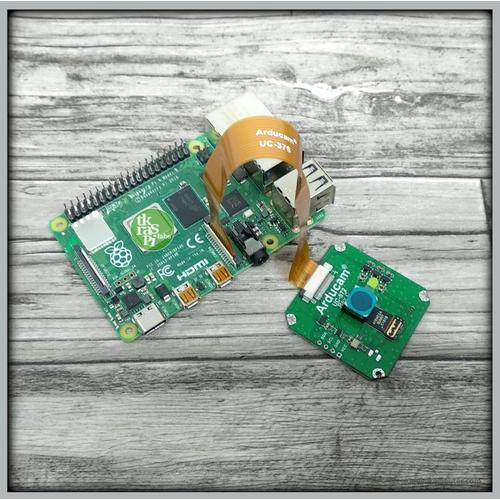

Arducam-IMX298 MIPI 16MP Color Camera Module for Raspberry Pi 4/3B+/3




Arducam-IMX298 MIPI 16MP Color Camera Module for Raspberry Pi 4/3B+/3
Terjual 7
rating 5 (3 ulasan)
Diskusi (1)
Rp775.000
Detail
Note:
Please note that it is the RAW sensor which doesn’t include ISP (Image Signal Processing) on the image sensor chip, so it only supports manual exposure, manual white balance, manual gain settings.
Features:
Optical format: 1/2.8−inch
Active pixels: 4656 H × 3496 V
Pixel size: 1.12um x 1.12um
Color filter array: RGBW Bayer pattern
ADC resolution: 10−bit, on−chip
Output Interface: 2-Lane / 4-Lane MIPI
Frame Rate: 16MP full resolution at 30fps
FOV 60 degrees
Support all series Raspberry pi boards
Application:
Cellular phones
PDAs
Toys
Other battery-powered products
ARM/FPGA/DSP based platforms
Package Including:
1pcs Arducam MIPI IMX298 16MP Color Camera Module
1pcs 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
1pcs 80mm 22pin 0.5mm pitch FPC cable
Sources :
https://www.uctronics.com/index.php/arducam-imx298-mipi-16mp-color-camera-module-for-raspberry-pi.html
Please note that it is the RAW sensor which doesn’t include ISP (Image Signal Processing) on the image sensor chip, so it only supports manual exposure, manual white balance, manual gain settings.
Features:
Optical format: 1/2.8−inch
Active pixels: 4656 H × 3496 V
Pixel size: 1.12um x 1.12um
Color filter array: RGBW Bayer pattern
ADC resolution: 10−bit, on−chip
Output Interface: 2-Lane / 4-Lane MIPI
Frame Rate: 16MP full resolution at 30fps
FOV 60 degrees
Support all series Raspberry pi boards
Application:
Cellular phones
PDAs
Toys
Other battery-powered products
ARM/FPGA/DSP based platforms
Package Including:
1pcs Arducam MIPI IMX298 16MP Color Camera Module
1pcs 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
1pcs 80mm 22pin 0.5mm pitch FPC cable
Sources :
https://www.uctronics.com/index.php/arducam-imx298-mipi-16mp-color-camera-module-for-raspberry-pi.html
