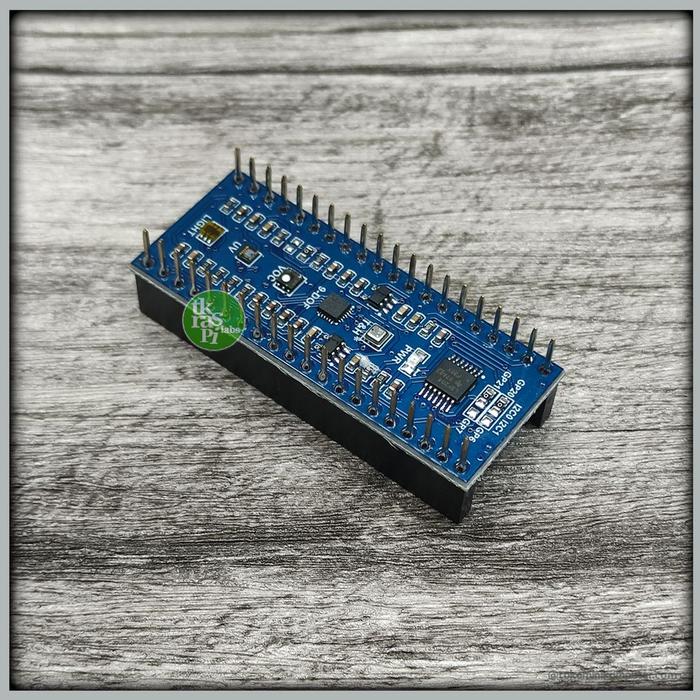

Environment Sensors Module for Raspberry Pi Pico - Waveshare

The Pico-Environment-Sensor gives Raspberry Pi Pico the ability to collect environment data like temperature amp; humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc. It can also be used to build a robot that can detect motion and orientation. • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series • Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light • Onboard BME280 sensor, for measuring temperature, humidity, and air pressure • Onboard ICM20948 motion sensor, accelerometer, gyroscope, and magnetometer • Onboard LTR390-UV-1 sensor, for measuring UV rays • Onboard SGP40 sensor, for detecting ambient VOC • I2C bus, allows retrieving data by just using two wires • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) TSL25911FN digital ambient light sensor : I2C address : 0x29 Effective range :0~88000Lux BME280 temperature, humidity, and air pressure sensor : I2C address : 0x76 Temperature detection : -40 ~ 85℃ (0.01℃ resolution, ±1℃ accuracy) Humidity detection 0~100%RH (0.008%RH resolution, ±3%RH accuracy, 1s response time, ≤2%RH delay) Air pressure detection 300~1100hPa (0.18Pa resolution, ±1hPa accuracy) ICM20948 motion sensor : (9-dof: 3-axis accelerometer, 3-axis gyroscrope, 3-axis magnetometer) I2C address : 0x68 Accelerometer resolution : 16-bit Accelerometer range (configurable): ±2, ±4, ±8, ±16g Gyroscope resolution :16-bit Gyroscope range (configurable): ±250, ±500, ±1000, ±2000°/sec Magnetometer resolution:16-bit Magnetometer range : ±4900µT LTR390-UV-1 UV sensor : I2C address : 0x53 Response wavelength :280nm - 430nm SGP40 VOC sensor : I2C address : 0x59 Measuring range : 0 ~ 1,000 ppm ethanol equivalent Limit condition lt; 0.05 ppm ethanol equivalent OR lt; 10 % preset concentration point (the larger one should prevail) Response time : lt; 10 s (tau 63 %) Start time : lt; 60 s On-chip humidity compensation supp
