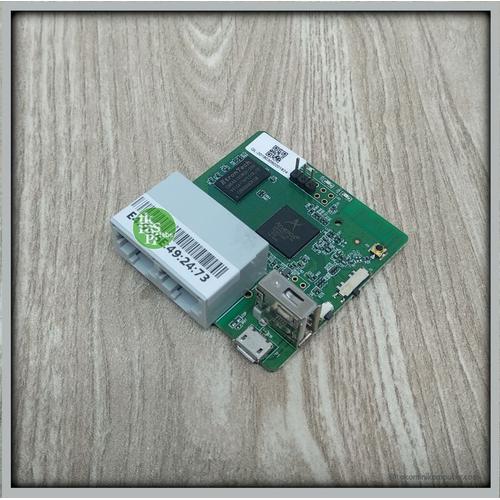

OpenWRT Board AR150 (GL.iNet AR150)

OpenWRT Router Board bebasis chipset AR150 dari GL.iNet cocok untuk dipadukan dengan device-cevice IoT atau keperluan lain dalam project elektronika.

Paket :
1 x AR150 AR150 OpenWRT Router Board

Spesifikasi :
150Mbps Wi-Fi Speed
1 x 2.0 USB Port
1 x micro usb Port
1 x Switch Button
2 x Ethernet Ports

Hardware Specification
Model GL-AR150
CPU Atheros 9331 400MHz
Memory DDRII 64MB
Storage 16MB flash
Interfaces 1 WAN, 1 LAN, 1 USB2.0, 1 Micro USB (power), 1 Reset Button, UART
Frequency 2.4GHz
Transmission Rate 150Mbps
Max. Tx Power 18dBm
Protocol 802.11 b/g/n
External Drive Format Support FAT32/NTFS/exFAT/EXT4/EXT3/EXT2
Webcam Support MJPEG, YUV (web cam not support any more from firmware v2.27)
DIY Features UART, GPIO, 3.3V & 5V power port
External Antenna Support Yes (optional)
PoE Module Support Yes (optional)
Power Input 5V/1A
Power Consumption <1.5W
Dimension, Weight 58mmX58mmX25mm, 39g

Sources :
https://www.gl-inet.com/products/gl-ar150/
https://docs.gl-inet.com/en/2/hardware/ar150/
