Atur jumlah dan catatan
Stok: Habis
Subtotal
-

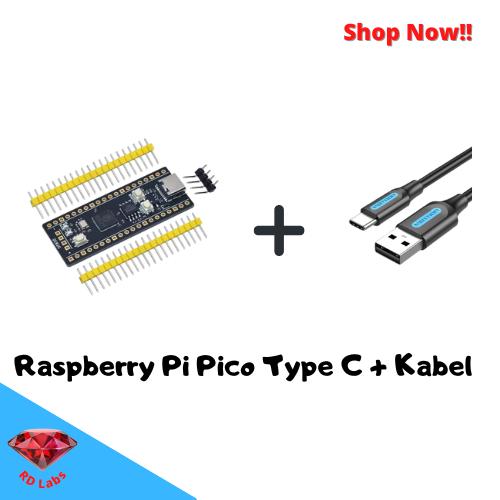

Raspberry Pi USB Type-C RP2040 microcontroller-board dual-core 2MB - Pico TypC+kabel
Rp115.000
Pilih usb port type: Pico TypC+kabel
Stok varian ini habis. Simpan di Wishlist untuk diingatkan ketika barang kembali tersedia.
Pertama di tanah air! Menggunakan chip versi B2, produksi Oktober 2021.
Cek sebelum Anda membeli:
versi MicroPython v1.18 on 2022-01-17; Raspberry Pi Pico with RP2040
Isi Paket:
1x Raspberry Pi Pico Microcontroller Board
2x Header Male 20pin, belum disolder
1x Header Male 4 Pin, belum disolder.
Ada 2 versi board RP2040 yang tersedia:
(1) USB Type-C dengan ciri warna hitam, dapat dihubungkan langsung dengan HP Android Anda.
===> Pilih paket bundling dengan kabel Type-C ke Type-C, warna kabel putih.
(2) USB Micro dengan ciri warna hijau.
Spesifikasi Board dengan USB Micro, warna hijau:
* 21 mm × 51 mm form factor
* RP2040 microcontroller chip designed by Raspberry Pi in the UK
* Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
* 264KB on-chip SRAM
* 2MB onboard QSPI Flash
* 26 multifunction GPIO pins, including 3 analog inputs
* 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
* 1 × USB 1.1 controller and PHY, with host and device support
* 8 × Programmable I/O (PIO) state machines for custom peripheral support
* Supported input power 1.8–5.5V DC
* Operating temperature -20°C to +85°C
* Castellated module allows soldering direct to carrier boards
* Drag-and-drop programming using mass storage over USB
* Low-power sleep and dormant modes
* Accurate on-chip clock
* Temperature sensor
* Accelerated integer and floating-point libraries on-chip
The Black color board:
1. Dimensi board: 22 x 53 mm
2. Ada tambahan tombol untuk Reset dan User Key, total 3 tombol.
3. Ada tambahan LED power
4. Menggunakan port USB Type-C yang lebih kuat, bukan USB Micro seperti board hijau.
5. Spesifikasi lain sama dengan board warrna hijau
https://datasheets.raspberrypi.org/pico/pico-datasheet.pdf
Produk lain terkait: https://www.tokopedia.com/rdlabs/get-started-with-micropython-on-raspberry-pi-pico
Board RP2040 warna hijau saja:
https://www.tokopedia.com/rdlabs/raspberry-pi-pico
Cek sebelum Anda membeli:
versi MicroPython v1.18 on 2022-01-17; Raspberry Pi Pico with RP2040
Isi Paket:
1x Raspberry Pi Pico Microcontroller Board
2x Header Male 20pin, belum disolder
1x Header Male 4 Pin, belum disolder.
Ada 2 versi board RP2040 yang tersedia:
(1) USB Type-C dengan ciri warna hitam, dapat dihubungkan langsung dengan HP Android Anda.
===> Pilih paket bundling dengan kabel Type-C ke Type-C, warna kabel putih.
(2) USB Micro dengan ciri warna hijau.
Spesifikasi Board dengan USB Micro, warna hijau:
* 21 mm × 51 mm form factor
* RP2040 microcontroller chip designed by Raspberry Pi in the UK
* Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
* 264KB on-chip SRAM
* 2MB onboard QSPI Flash
* 26 multifunction GPIO pins, including 3 analog inputs
* 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
* 1 × USB 1.1 controller and PHY, with host and device support
* 8 × Programmable I/O (PIO) state machines for custom peripheral support
* Supported input power 1.8–5.5V DC
* Operating temperature -20°C to +85°C
* Castellated module allows soldering direct to carrier boards
* Drag-and-drop programming using mass storage over USB
* Low-power sleep and dormant modes
* Accurate on-chip clock
* Temperature sensor
* Accelerated integer and floating-point libraries on-chip
The Black color board:
1. Dimensi board: 22 x 53 mm
2. Ada tambahan tombol untuk Reset dan User Key, total 3 tombol.
3. Ada tambahan LED power
4. Menggunakan port USB Type-C yang lebih kuat, bukan USB Micro seperti board hijau.
5. Spesifikasi lain sama dengan board warrna hijau
https://datasheets.raspberrypi.org/pico/pico-datasheet.pdf
Produk lain terkait: https://www.tokopedia.com/rdlabs/get-started-with-micropython-on-raspberry-pi-pico
Board RP2040 warna hijau saja:
https://www.tokopedia.com/rdlabs/raspberry-pi-pico
