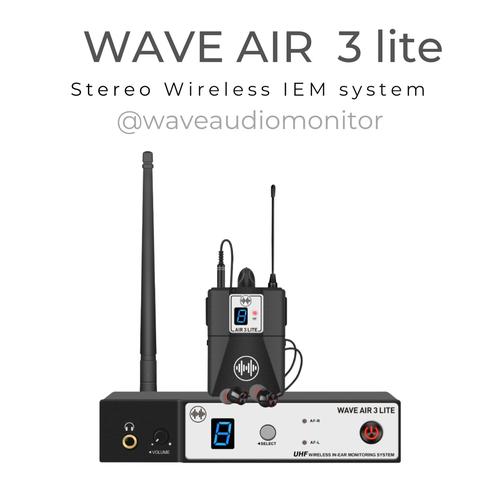

WAVE AIR 3 lite wireless IEM system stage panggung wave audio monitor - TAMBAH RECEIVER
Rp621.000
Pilih ukuran: TAMBAH RECEIVER
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
DESKRIPSI
Seri budget dari WAVE AIR 3
dengan perbedaan :
+ input connector hanya ada 2 COMBO (xlr&jack) tidak ada lagi 3.5mm port
+ Channel freq yang lebih sedikit pilihan nya ( 16 pilihan channel freq )
+ Frequency channel tidak menampilkan Mhz frequency nya
+ Grade preamp sedikit lebih dibawah air3&air3st tapi tetap bertenaga dan headroom cukup baik.
MAIN FEATURES :
- Ultra high frequency band, stable transmission
- In the 32MHZ Frequency band, 16 preset frequencies can be viewed at will
- Dynamic expansion circuit greatly improves signal to noise ratio
- LED Screen display
- With no power and RF receiving indicator lights
- Using two 1.5V AA batteries and efficient power circuit, long service life
- Lightweight ABS shell, sturdy and durable
- The transmitter uses a common socket for balanced and unbalanced
- Transmitter with output monitoring wired headphone jack
TECHNOLOGY SPESIFICATION
System Parameter :
Work frequency : 500-700MHZ
Modulation mode : Broadbrand Fm
Channels : 16 (1,2,3,4,5,6,7,8,9,A,B,C,D,E,F,0
Channel frequency : 300KHz
Frequency stability : 0,005%
Dynamic bound : 100 decibels
Max excursion : 45KHz
Frequency response : 60Hz-18KHz(3 db)
S/N : >205Db
T.H.D : <0,5%
Operation distance : About 50m (without interruption)
Working enviroment Temperature : -10C -- +50C
Receiving Machine Index :
Transmitter 1.4 antenna
Sensitivitire : 12dBuV(80dB S/N)
Sensitivitive adjustable rang : 12-32dBuV
Erratic control : >75dB
Max output frequency : +10 dBV
Transmitter Index :
Antenna receive : BNC/50
Erratic control :-60dB
Power supply : DC12V / 700mA
Seri budget dari WAVE AIR 3
dengan perbedaan :
+ input connector hanya ada 2 COMBO (xlr&jack) tidak ada lagi 3.5mm port
+ Channel freq yang lebih sedikit pilihan nya ( 16 pilihan channel freq )
+ Frequency channel tidak menampilkan Mhz frequency nya
+ Grade preamp sedikit lebih dibawah air3&air3st tapi tetap bertenaga dan headroom cukup baik.
MAIN FEATURES :
- Ultra high frequency band, stable transmission
- In the 32MHZ Frequency band, 16 preset frequencies can be viewed at will
- Dynamic expansion circuit greatly improves signal to noise ratio
- LED Screen display
- With no power and RF receiving indicator lights
- Using two 1.5V AA batteries and efficient power circuit, long service life
- Lightweight ABS shell, sturdy and durable
- The transmitter uses a common socket for balanced and unbalanced
- Transmitter with output monitoring wired headphone jack
TECHNOLOGY SPESIFICATION
System Parameter :
Work frequency : 500-700MHZ
Modulation mode : Broadbrand Fm
Channels : 16 (1,2,3,4,5,6,7,8,9,A,B,C,D,E,F,0
Channel frequency : 300KHz
Frequency stability : 0,005%
Dynamic bound : 100 decibels
Max excursion : 45KHz
Frequency response : 60Hz-18KHz(3 db)
S/N : >205Db
T.H.D : <0,5%
Operation distance : About 50m (without interruption)
Working enviroment Temperature : -10C -- +50C
Receiving Machine Index :
Transmitter 1.4 antenna
Sensitivitire : 12dBuV(80dB S/N)
Sensitivitive adjustable rang : 12-32dBuV
Erratic control : >75dB
Max output frequency : +10 dBV
Transmitter Index :
Antenna receive : BNC/50
Erratic control :-60dB
Power supply : DC12V / 700mA
