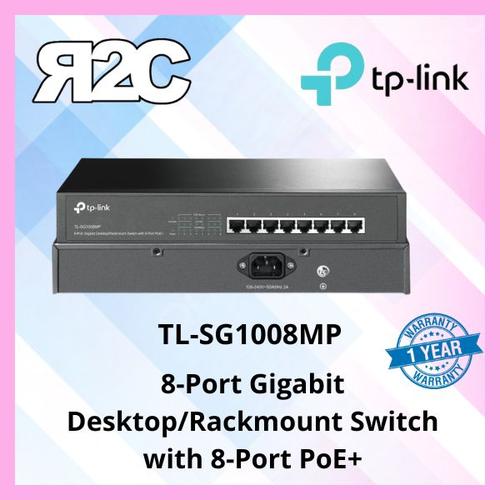

TP-Link TL-SG1008MP 8-Port Gigabit Rackmount Switch with 8-Port PoE+

Overview :
• 8 10/100/1000Mbps RJ45 ports
• Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
• Works with IEEE 802.3af/at compliant devices, expanding home and office networks
• Innovative energy-efficient technology reduces power consumption
• Supports PoE+ standard with total power budget of 153W* and up to 30W per port
• Plug and play design, no configuration required

Specifications :
HARDWARE FEATURES
Interface :
• 8 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
Network Media :
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity : 1
Physical Security Lock : No
Power Supply : 100-240VAC, 50/60Hz
Packet Forwarding Rate : 11.904 Mpps
PoE+ Ports(RJ45) :
• Standard: 802.3af/at compliant
• PoE+ Ports: 8 Ports
• Power Supply: 153W
Mac Address Table : 4K
Buffer Size : 1.5Mbits
Jumbo Frame : 16 KB
Switching Capacity : 16Gbps
Mounting : Desktop/Rack Mountable
Max Power Consumption :
• 8.57W(220V/50Hz. no PD connected)
• 173.65W(110V/60Hz. with 153W PD connected)
Max Heat Dissipation :
• 29.22BTU/h(no PD connected)
• 592.15BTU/h(with 153W PD connected)

SOFTWARE FEATURES
Advanced Features :
• Compatible With IEEE 802.3af/at Compliant PDs
• Priority Function
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure
• For Half-Duplex Mode
Transfer Method : Store-And-Forward

OTHERS
Certification : FCC, CE, RoHS
Package Contents :
• TL-SG1008MP
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Environment :
• Operating Temperature: 0℃~50℃ (32℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
