Boost & Buck1.8V 3V 3.7V 5V to 3.3V DC/DCLow Noise Regulated Charge

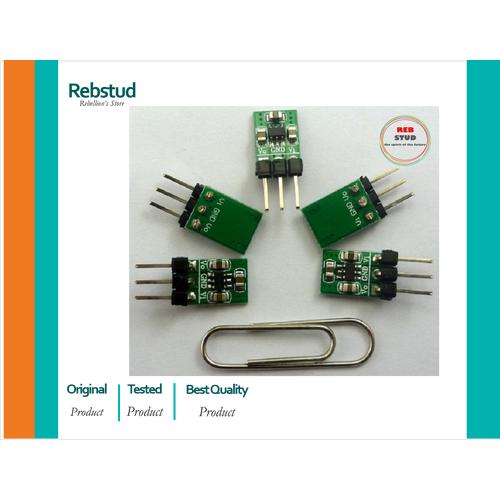

1.8V 3V 3.7V 5V to 3.3V Boost & Buck Low Noise Regulated Charge Pump DC/DC Converter

Description:
This is a micro-power( only 150MA ) DC-DC Step-Down & Step-Up Converter module

Spesifiksi:
-Low Noise, Regulated Charge Pump DC/DC Converter
-2 in 1 DC-DC Step-Down & Step-Up Converter module
-Fixed 3.3V+-4% Output
-Voltage Input Range: 1.8~5V
-Long time maximum output current 100mA
-Short time maximum output current 150mA
-working frequency 1.2MHz.
-Short-Circuit Protection
-No load input current : 0.65mA
-2.54mm pin pitch, Arduiuo Breadboard MCU Development Board friendly
-Excluding Pin Size 11mm x 7.62mm x 4.5mm(small)
-Weight : about 0.5g(Very very light)

Applications:
-Low Power Wifi Module:ESP8266,ESP32
-Low-power Bluetooth module : HC-05 HC-06
-Low-power Wireless UART module : HC-11 HC-12
-Low-power wireless module : CC1101 CC2500 Nrf24l01+
-Low-power LED Driver
-Arduino Module Dev Board
-2 AA Cell to 3.3V
-USB On-The-Go Devices
-Handheld Devices

This is a DC-DC voltage converter module,Must be noted when using:
1 .Input voltage can not be greater than the maximum input range
2 .Output power can not be greater than the maximum load for a long time
3 .Input power must be greater than the output power, because the power consumption of the module itself

Paket Penjualan:
-5 PCS 2 in 1 DC-DC Boost & Buck Converter 1.8V-5V to 3.3V module
