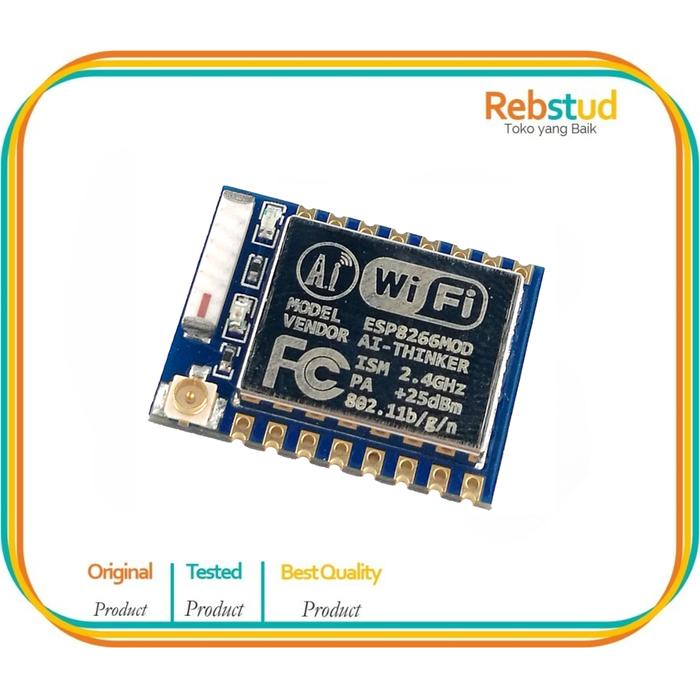

Modul ESP8266MOD Al-Thinker ESP-07 WiFi Model Vendor - ESP-07

Features :

- 802.11 b/g/n

- Integrated low power 32-bit Tensilica L106 MCU

- Integrated 10-bit ADC

- Integrated TR switch, balun, LNA, power amplifier and matching network

- Integrated PLL, regulators, and power management units

- Supports antenna diversity

- Wi-Fi 2.4 GHz, support WPA/WPA2

- Support STA/AP/STA+AP operation modes

- Support Smart Link Function for both Android and iOS devices

- Support Smart Link Function for both Android and iOS devices

- SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO

- STBC, 1x1 MIMO, 2x1 MIMO

- A-MPDU & A-MSDU aggregation and 0.4s guard interval

- Deep sleep power <10uA, Power down leakage current < 5uA

- Wake up and transmit packets in < 2ms

- Standby power consumption of < 1.0mW (DTIM3)

- +20dBm output power in 802.11b mode

- Operating temperature range -40C ~ 125C
